UBIQUITI 25G MULTI-MODE OPTICAL MODULE

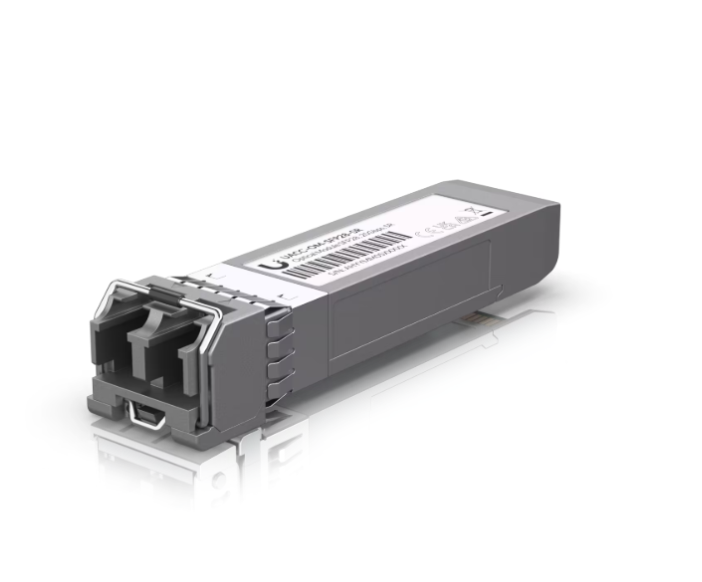

The Ubiquiti 25G Multi-Mode Optical Module (UACC-OM-SFP28-SR) is a fast SFP28 fiber optic transceiver built to give 25Gbps network connections over multi‑mode fiber. It works at 1Gbps, 10Gbps, and 25Gbps data rates. Can run up to 100 metres using OM4 multi‑mode fiber or up to 70 metres using OM3 fiber.

With a Duplex LC UPC connector and 850 nm wavelength, the Ubiquiti 25G Multi‑Mode  is a choice for fast connections between compatible network switches, servers and other networking equipment. The Ubiquiti 25G Multi‑Mode Optical Module fits into SFP28, SFP+, and SFP interfaces, making it useful when upgrading or expanding a high‑performance fiber network.

Fiber optic cable is not included.

Key Specifications

• Form Factor: SFP28
• Connector: Duplex LC UPC
• Fiber Type: Multi‑Mode Fiber
• Supported Data Rates: 1 / 10 / 25 Gbps
• Maximum Data Rate: 25 Gbps
• TX Wavelength: 850 nm
• RX Wavelength: 850 nm
• OM4 Maximum Distance: 100 m (328 ft)
• OM3 Maximum Distance: 70 m (229 ft)
• Maximum Power Consumption: 0.8 W
• Operating Temperature: 0 to 70 °C (32 to 158 °F)
• Pack Option: Single Unit
• Fiber Cable: Not included

Key Features

• 25Gbps fast fiber connectivity
• Supports 1Gbps, 10Gbps and 25Gbps data rates
• Designed for multi‑mode fiber
• Up to 100 metres with OM4 fiber
• Up to 70 metres with OM3 fiber
• SFP28 form factor
• Duplex LC UPC connector
• 850 nm TX and RX wavelength
• Compatible with SFP28, SFP+ and SFP interfaces
• Maximum power consumption of 0.8 W
• Suitable for fast network connections and uplinks

Where Can You Use It?

• Data Centers

Use the module for connections between switches, servers, and other network equipment.

• Enterprise Networks

The module is suitable for businesses that need reliable fiber links between compatible networking devices.

• Server Rooms

The module can be used for switch‑to‑server or switch‑to‑switch fiber connections.

• Network Switch Uplinks

Use the module to create fast fiber uplinks between switches equipped with SFP28 ports.

• Business Offices

The Ubiquiti 25G Multi‑Mode Optical Module is an option for organizations upgrading their network infrastructure from 10Gbps to 25Gbps.

• Campus Networks

The Ubiquiti 25G Multi‑Mode Optical Module is useful for fast fiber connections between network equipment within buildings or nearby network locations within the supported fiber distance.

• High‑Performance Networking

The Ubiquiti 25G Multi‑Mode Optical Module is suitable for applications where higher bandwidth is needed for servers, storage, aggregation, and network infrastructure.

Technical Knowledge – Explained Simply

An SFP28 optical module is a transceiver that fits into a compatible SFP28 port on networking equipment. Its job is simple: it converts network data into light signals that travel through fiber optic cable. At the end, another compatible optical module converts the light signals back into network data.

The Ubiquiti 25G Multi‑Mode Optical Module uses multi‑mode fiber and supports speeds of up to 25Gbps.

It supports three data rates:

• 1Gbps
• 10Gbps
• 25Gbps

This gives customers flexibility when connecting compatible networking equipment operating at these speeds.

OM3 vs OM4 Fiber

The supported distance depends on the type of multi‑mode fiber being used:

• OM4 Fiber: Up to 100 metres (328 ft)
• OM3 Fiber: Up to 70 metres (229 ft)

So if you need the 100‑metre distance specified by Ubiquiti, use compatible OM4 multi‑mode fiber.

Duplex LC UPC Connector

The Ubiquiti 25G Multi‑Mode Optical Module uses a Duplex LC UPC connector.

“Duplex” means the fiber connection uses two fiber strands – one for transmitting data and one for receiving data.

The LC connector is a compact fiber connector commonly used in network equipment and fiber patch cables.

Compatibility

Ubiquiti states that the Ubiquiti 25G Multi‑Mode Optical Module is compatible with:

• SFP28 interfaces
• SFP+ interfaces
• SFP interfaces

Customers should always confirm that their particular network equipment supports the required module, speed, and fiber type before purchasing.

Size & Weight

• Form Factor: SFP28

Ubiquiti’s product specifications currently provide the SFP28 form factor but do not list physical dimensions or product weight for the Ubiquiti 25G Multi‑Mode Optical Module.

For accuracy, dimensions and weight should not be added to the website unless Ubiquiti provides them.

Power Consumption

The Ubiquiti 25G has a power consumption of just 0.8 W, making it a low‑power option for compatible high‑speed fiber networking applications.

Operating Temperature

The Ubiquiti 25G is rated for an operating temperature range of:

0 to 70 °C (32 to 158 °F)

Important Information

• Fiber cable is not included.
• The maximum distance is 100 m with OM4 and 70 m with OM3.
• The connected network equipment must support the SFP/SFP+/SFP28 interface and speed.
• This is a Class 1 laser product. Do not look directly into the ends of the fiber optic cable or SFP module while the equipment is powered.

Why Do Customers Need This Product?

If your customer needs to connect network equipment at 10Gbps or 25Gbps over multi‑mode fiber, the Ubiquiti 25G Multi‑Mode Optical Module provides a reliable solution.

It is especially useful for data centers, enterprise networks, server rooms, and fast switch uplinks where fast fiber connectivity’s important.

With support for up to 25Gbps OM4 distances, up to 100 metres of duplex LC UPC connectivity, and compatibility with SFP28/SFP+/SFP interfaces, the Ubiquiti 25G Multi‑Mode Optical Module gives customers a way to build or upgrade their high‑speed fiber network.

In terms of this is the small fiber module you need to turn a compatible network switch or server port into a fast fiber connection.
