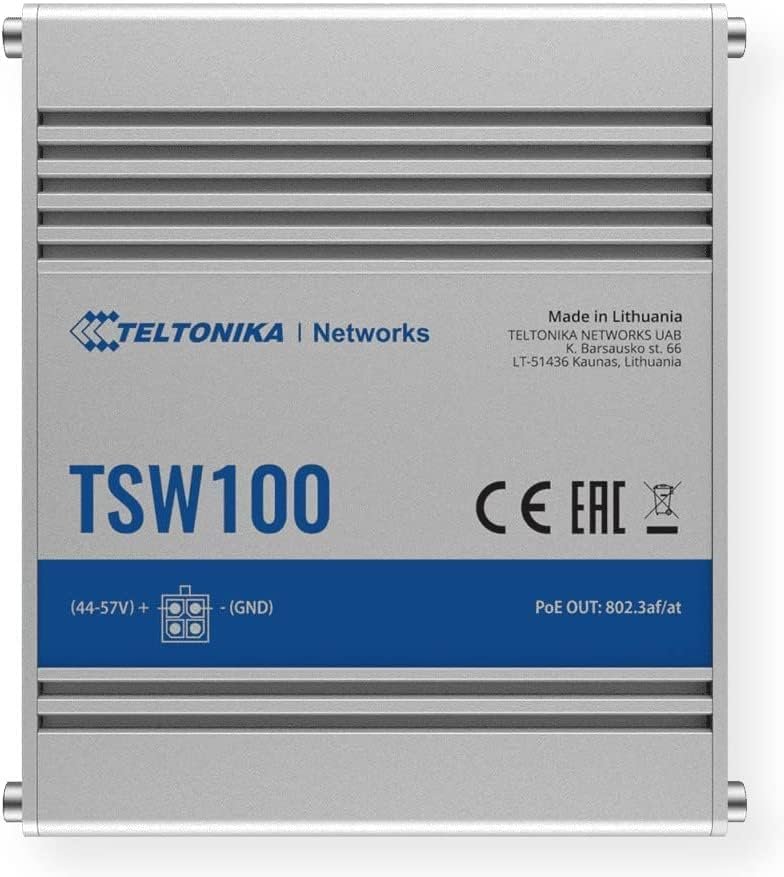

TSW100000030 / TSW100 PoE+ Switch 5 GbE

The Teltonika TSW100 PoE+ Switch is a 5-port Gigabit Ethernet switch. It provides both network connectivity and power to PoE devices.

It has 5 × Gigabit Ethernet ports. Among them, there are 4 × PoE+ ports and 1 × uplink port. The four PoE+ ports support IEEE 802.3af and 802.3at. This allows the switch to deliver up to 30 W per PoE port.

This makes the TSW100 useful when you need to connect devices such as cameras, access points, and other Ethernet equipment. It helps reduce the need for power cables and adapters.

The TSW100000030 is the TSW100 order code. It comes with the UK power supply.

Key Specifications

• Brand Teltonika Networks
• Model TSW100
• Order Code TSW100000030
• Product Type Industrial Unmanaged PoE+ Ethernet Switch
• Ethernet Ports 5 × Gigabit Ethernet
• Port Speed 10/100/1000 Mbps
• PoE Ports 4 × PoE+
• Uplink Port 1 × Gigabit Ethernet
• PoE Standard IEEE 802.3af / 802.3at
• Maximum PoE Power Up to 30 W per port
• Total PoE Budget Up to 120 W at PSE
• Power Input 9–57 VDC
• PoE Operating Requirement 44 VDC or higher for PoE operation
• Bandwidth 10 Gbps
• Packet Buffer 128 KB
• MAC Address Table 2K entries
• IP Rating IP30
• Mounting DIN rail/surface mounting
• Housing Aluminium
• Operating Temperature -40°C to +75°C
• Dimensions 115 × 32 × 95 mm
• Weight Approx. 340 G

Specifications are based on Teltonika Networks documentation.

Main Features

• – 5 Gigabit Ethernet ports for wired network connectivity.
• – 4 PoE+ ports supporting IEEE 802.3af and 802.3at.
• – Up to 30 W per PoE port for powering compatible devices.
• – Up to 120 W total PoE power budget at the power source equipment (PSE).
• – 1 Dedicated Gigabit uplink port for connecting the switch to the main network.
• – 10/100/1000 Mbps Ethernet for high-bandwidth network connections.
• – Unmanaged operation – no complicated configuration is required.
• – Plug-and-play installation for straightforward network deployment.
• – DIN rail and surface mounting options.
• – Rugged aluminium housing designed for industrial installations.
• – Wide 9–57 VDC power input range.
• – -40°C to +75°C operating temperature range for demanding environments.
• – 10 Gbps bandwidth for handling network traffic across the switch.

What Is PoE+?

PoE+ (Power over Ethernet Plus) allows a network cable to carry both data and electrical power to a device.

For example, running one Ethernet cable for data and another cable for power, a PoE device can receive both through the same network cable connected to one of the TSW100’s PoE+ ports.

The TSW100 supports IEEE 802.3af and 802.3at with up to 30 W available per PoE port.

This can make installations cleaner and easier, especially when powering equipment in locations where installing power outlets would be difficult.

What Is an Unmanaged Switch?

The TSW100 is an Ethernet switch. This means it does not require network setup.

You connect your Ethernet devices to the ports. You connect the switch to the power supply. Then the switch handles the network traffic automatically.

This makes it suitable for customers who need reliable Ethernet connectivity without advanced switch management.

Important PoE Power Information

The TSW100 accepts VDC input power. However, Teltonika specifies that the PoE function requires a power supply providing 44 VDC or higher.

The maximum PoE budget can reach 120 W. The actual PoE capacity depends on the power supply being used.

Teltonika notes that the standard supplied power adapter provides a 60 W PoE budget. A power supply of more than 130 W is required to reach the maximum 120 W PSE budget.

This is important when planning an installation with PoE-powered devices.

Where Can You Use Teltonika TSW100?

• CCTV & Security Cameras

Connect PoE security cameras while supplying power and network connectivity through the Ethernet cable.

• Industrial Automation

Use the TSW100 to connect industrial Ethernet equipment, controllers, and other network-enabled devices.

• Wireless Access Points

The PoE+ ports can provide both network connectivity and power to compatible access points.

• Transportation

The TSW100 can be used in transportation systems where multiple Ethernet devices need network connectivity and PoE power. Teltonika has documented a transportation use case involving cameras and a TSW100 in a vehicle license-reading system.

• Smart City Systems

Suitable for network-connected equipment installed in city and infrastructure projects.

• Industrial Cabinets

The DIN rail mounting option makes the switch suitable for control cabinets and industrial electrical panels.

• Remote Equipment

Useful for connecting and powering Ethernet devices installed away from the network equipment.

• IoT Installations

The switch can connect Ethernet-based IoT devices while simplifying power distribution to compatible PoE equipment.

• Security Systems

Suitable for connecting cameras, access points, and other Ethernet devices used in building infrastructure.

Size & Weight

• Dimensions: 115 × 32 × 95 mm
• Weight: 340 g

Its compact industrial housing allows it to be installed inside equipment cabinets, control panels, and other space-limited locations.

Technical Knowledge

• Gigabit Ethernet

Gigabit Ethernet provides network speeds of up to 1000 Mbps. The TSW100 has five Gigabit Ethernet ports. This makes it suitable for applications that require bandwidth than traditional 10/100 Mbps networking.

• PoE+ PSE

TSW100 works as a Power Sourcing Equipment (PSE). In terms, this means the switch can supply power through its PoE Ethernet ports to compatible powered devices.

• DIN Rail Mounting

DIN rail mounting is commonly used in industrial control cabinets. It allows the switch to be installed neatly alongside industrial equipment.

• 10 Gbps Switching Bandwidth

The TSW100 has 10 Gbps bandwidth. This helps it handle traffic between its Gigabit Ethernet ports efficiently.

Why Do Customers Need the Teltonika TSW100?

The Teltonika TSW100 is a choice when a customer needs to connect multiple Gigabit Ethernet devices. It also powers PoE equipment from the switch.

Instead of installing separate power connections for every compatible PoE device, the TSW100 can deliver network data and power through Ethernet cables.

Its industrial aluminium housing, wide DC input range, DIN rail mounting and wide operating temperature range also make it suitable for professional installations.

For customers working with CCTV cameras, access points, industrial equipment, transportation systems, IoT devices or control cabinets, the TSW100 provides a way to expand the wired network. It also supplies PoE power.
