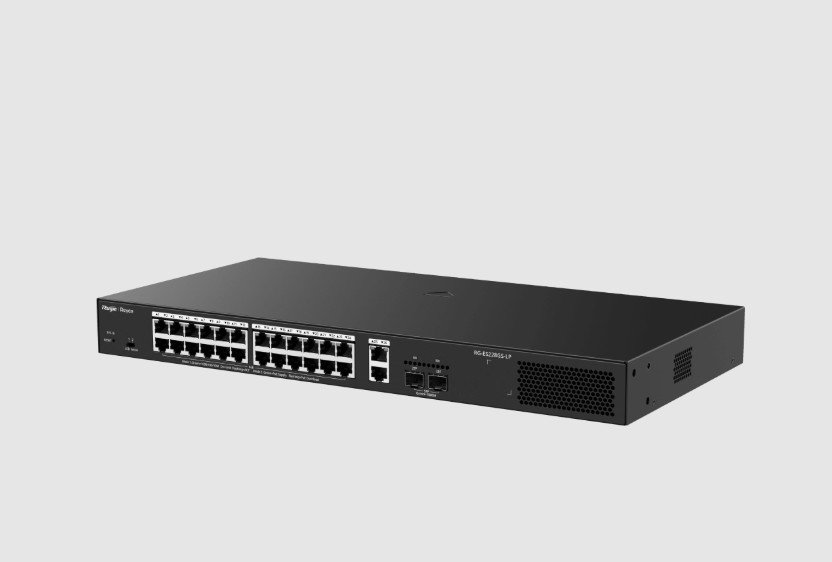

RUIJIE 24-PORT 10/100/1000 MBPS POE+,2-PORT GIGABIT & 2-PORT SFP CLOUD MANAGED SWITCH,250 W

The Ruijie Networks Ruijie Reyee RG-ES228GS-LP Gigabit Cloud Managed PoE+ Switch is a good switch for modern IP surveillance, business networks, hotels, offices, retail stores, and big companies. It has 24 Gigabit PoE+ ports, 2 Gigabit Ethernet uplink ports, and 2 Gigabit SFP fiber ports, which means it can connect a lot of devices to the network and give them power at the same time.

This switch is very powerful with a 250W PoE budget, so it can power devices like IP cameras, wireless access points, and VoIP phones without needing power adapters. You can also manage it using the Ruijie Cloud platform, which makes it easy to monitor, configure, and fix problems.

Key Specifications:

• Brand Ruijie Reyee
• Model Number RG-ES228GS-LP
• Product Type Smart Cloud Managed PoE+ Switch
• Switch Layer Layer 2 Managed Switch
• Total Ports 28 Ports
• PoE Ports 24 × 10/100/1000 Mbps Gigabit PoE+ RJ45 Ports
• Uplink Ports 2 × Gigabit RJ45 Ports
• Fiber Ports 2 × 1GE SFP Ports
• PoE Standard IEEE 802.3af/at PoE+
• PoE Power Budget 250W
• Switching Capacity 56 Gbps
• Forwarding Rate 41.664 Mpps
• PoE Watchdog Supported
• Port Isolation Supported
• Cloud Management Ruijie Cloud Platform
• Operating Temperature 0°C to 40°C
• Warranty 3 Years

Main Features

The main features of the Ruijie Reyee RG-ES228GS-LP are:

• 24-Port Gigabit PoE+ Network Switch: This switch has 24 high-speed Gigabit Ethernet PoE+ ports that can connect and power devices like IP cameras, access points, and VoIP phones using just one network cable.
• 250W High Power PoE Budget: the built-in 250W PoE power supply can support connected PoE devices, which reduces installation costs by eliminating separate power cables and adapters.
• Smart Cloud Management: you can. Monitor your network remotely using Ruijie Cloud, which makes it easy to configure settings, check device status, and fix problems from anywhere.
• Dedicated SFP Fiber Uplink Ports: the two 1GE SFP ports allow fiber connection for long-distance communication between switches, buildings, or network centers.
• CCTV Network Optimization: this switch is designed with IP camera recognition features, making it perfect for surveillance networks with many cameras and NVR systems.
• Automatic Loop Prevention: it helps maintain network performance by automatically detecting and preventing network loops that can cause downtime.
• PoE Watchdog Function: it detects and restarts unresponsive PoE devices, which improves reliability for CCTV cameras and remote devices.
• VLAN & Network Security Support: It supports port isolation and VLAN configuration to improve network security, traffic management, and performance.

So what is a PoE switch? It is a device that combines two functions: network data transfer and power supply through an Ethernet cable. The Ruijie RG-ES228GS-LP is especially useful for businesses because it reduces cable installation, simplifies maintenance, and provides network control.

Recommended Uses & Applications

This switch is recommended for:

1. CCTV Surveillance Systems: it is perfect for IP security cameras, NVR surveillance systems, and smart security solutions.

2. Offices & Corporate Networks: it is suitable for employee computers, IP phones, wireless access points and network printers.

3. Hotels & Hospitality: it is ideal for guest Wi-Fi networks, CCTV monitoring, VoIP communication systems and building network infrastructure.

4. Retail Stores & Shopping Centers: it is used for security cameras, POS systems, digital displays and wireless networking.

5. Schools & Training Centers: it supports computer labs, campus Wi-Fi, surveillance systems and smart classroom networks.

6. Factories & Industrial Networks: It provides connectivity for industrial cameras, monitoring systems, and network devices.

Physical Size & Weight

The physical size and weight of the Ruijie Reyee RG-ES228GS-LP are:

• Dimensions: 280 mm × 126 mm × 44 mm (compact 1U rack-mount design)
• Installation Type: rack mount installation or desktop placement
• Weight: approximately 2.5–3 kg (device weight may vary depending on packaging and accessories)

Why do customers need the Ruijie Reyee RG-ES228GS-LP?

It provides a solution for businesses that need a reliable network with many connected devices. It combines high-speed Gigabit networking, PoE power delivery, cloud management, and fiber uplink support in one switch. Of installing separate power supplies for cameras and network devices, customers can save installation time, reduce cable complexity, and easily manage their entire network from one smart platform. It is a choice for customers looking for a 24-port Gigabit PoE+ managed switch for CCTV, office networks, hotels, and enterprise applications where reliability, easy management, and future expansion are important. The Ruijie Reyee RG-ES228GS-LP is a choice for anyone who needs a powerful and easy-to-use switch.
