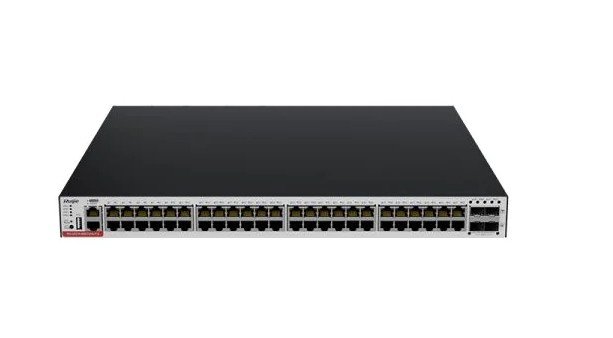

RG-S5350-48GT4XS-P-E 48-Port GE Layer 3 Managed Access Switch with PoE+

The Ruijie RG-S5350-48GT4XS-P-E Managed PoE Switch is a quality network switch designed for companies that need a strong access layer solution. With 48 Gigabit PoE/PoE+ ports, it enables businesses to link network devices while sending power and data through one Ethernet cable.

The switch has Layer 3 routing features, VLAN management, security rules, and fast 10 Gigabit SFP+ uplinks, helping companies create a faster, more secure, and easier-to-manage network.

This switch is suitable for enterprise offices, hotels, schools, hospitals, smart buildings, CCTV surveillance systems, and big Wi-Fi setups.

Key Specifications

• Brand Ruijie
• Model RG-S5350-48GT4XS-P-E
• Product Type Layer 3 Managed Access SwitchEthernet Ports 48 × 10/100/1000BASE-T Gigabit RJ45 Ports
• PoE Support IEEE 802.3af/at PoE+
• PoE Ports All 48 RJ45 Ports Support PoE/PoE+
• PoE Power Budget Up to 370W PoE Power Budget
• PoE Output Up to 30W per PoE port
• Uplink Ports 4 × 1G/2.5G/10G SFP+ Ports
• Switching Capacity 176 Gbps
• Packet Forwarding Rate 158 Mpps
• MAC Address Table 16,000 Entries
• IPv4 Routes Up to 6,000
• IPv6 Routes Up to 2,000
• VLAN Support Up to 4,000 VLANs
• CPU Dual-Core 1.0 GHz CPU
• Memory 1GB DDR4
• Flash Memory 512MB
• Buffer Memory 4MB
• Management Port 1 × RJ45 Console Port
• USB Port 1 × USB 2.0
• Rack Mount 1U Rack Mountable
• Power Supply Built-in AC Power Supply
• Input Voltage 100V–240V AC, 50/60Hz
• Dimensions 442 × 220 × 43.6 mm
• Weight Approx. 4.0 Kg
• Series RG-S5350-E Series

Specifications are based on manufacturer information.

Main Features & Benefits

1. 48-Port Gigabit PoE+ Connectivity

The RG-S5350-48GT4XS-P-E offers 48 Gigabit Ethernet PoE+ ports, allowing businesses to link devices while making installation easier.

It can power:

• IP security cameras
• Wireless access points
• VoIP phones
• Access control systems
• IoT devices
• No extra power cables are needed for devices that support PoE.

2. High-Speed 10G SFP+ Uplink Ports

The switch has 4 × 10G SFP+ uplink ports giving communication between access switches, servers and network cores.

Benefits:

• Faster data transfer
• Less network congestion
• Better performance for high-speed applications
• Easier network expansion
• 3. Layer 3 Routing Capability
• This managed switch has Layer 3 networking features helping organizations create network setups.
• Supports:
• Static routing
• RIP/RIPng
• OSPFv2/OSPFv3
• IPv4 and IPv6 routing
• VLAN routing

4. Advanced Network Management

The switch offers professional management features for IT staff.

• VLAN setup
• Data flow monitoring
• Network security rules
• Centralized management
• Configuration backup and recovery
• Ruijie’s all-in-one management platform makes daily network work easier.

5. Strong Security Protection

Built-in security tools help protect business networks from access and traffic overload.

Features include:

• CPU protection rules
• Access control rules
• VLAN security
• User access control

6. Energy Efficient Operation

The switch has energy-saving features that reduce power use.

Energy-saving benefits:

• Electricity use
• Reduced operating costs
• Less network noise
• Improved performance

Where Can You Use Ruijie RG-S5350-48GT4XS-P-E?

• Enterprise Offices

Great for large offices that need strong connections for computers IP phones, Wi-Fi access points and business tools.

• CCTV Surveillance Networks

The PoE+ ports make it good for connecting IP cameras without extra power installation.

• Schools & Universities

Provides connection for classrooms, labs, wireless networks and campus needs.

• Hotels & Hospitality

Supports guest Wi-Fi, IP cameras, access control and smart building devices.

• Healthcare Facilities

Suitable for secure networking of medical equipment, computers, cameras and communication tools.

• Smart Buildings

Can link devices, sensors, security systems and automation tools.

• Data Rooms & Network Cabinets

The 10G uplinks provide connection between access layers and core networks.

Technical Knowledge

• A Layer 3 Managed Switch acts like a traffic controller for your network. It not only links devices like a normal switch but can also make smart choices about where data should go.
• The PoE+ feature lets the switch send both data and power through one Ethernet cable, cutting installation costs and making device setup easier.
• The 10G SFP+ uplinks work like high-speed roads between parts of the network, preventing slow performance when many users and devices are connected.

Why Customers Need Ruijie RG-S5350-48GT4XS-P-E

Companies today rely on the internet, connected devices, security cameras, and wireless networks. A basic switch may not have the performance, security, or control as the network grows.

The Ruijie RG-S5350-48GT4XS-P-E is a choice because it offers:

• 48 Gigabit PoE+ ports for many powered devices
• 10G uplink for future network growth
• Layer 3 routing for better network performance
• Enterprise-level security and management
• Reliable work for important business settings
• Less installation work, with PoE technology

For companies looking for a strong, expandable, and easy-to-manage Gigabit PoE switch, the Ruijie RG-S5350-48GT4XS-P-E gives the performance and flexibility needed for today’s modern networks.
