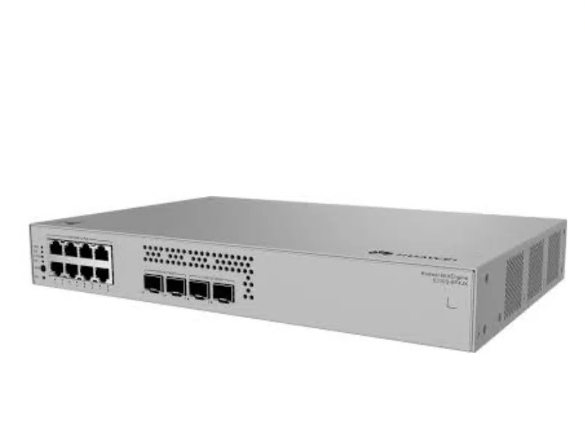

HUAWEI S310S-8P4JX (8*10/100/1000BASE-T ports, 2*10GE SFP+ ports, built-in AC power, Fanless)

The HUAWEI eKitEngine S310S-8P4JX Managed Gigabit Ethernet Switch is a managed switch that fits businesses needing a flexible and easy‑to‑manage network. It has 8 Gigabit Ethernet PoE+ ports, 2 × 2.5GE SFP ports, and 2 × 10GE SFP+ uplink ports, which lets you connect devices and link to fast network infrastructure.

Because it has a built‑in AC power supply, fanless cooling, and can be installed in various ways, the HUAWEI eKitEngine S310S-8P4JX is a practical choice for offices, retail stores, hotels, schools and other small and medium businesses.

The PoE+ ports can supply power to devices, such as IP cameras and wireless access points, through Ethernet cables. Its 10 Gigabit SFP+ uplinks support high‑speed connections to core switches and other network equipment, helping businesses build a network that can handle growing connectivity needs.

Key Features

• 8 Gigabit Ethernet Ports: Connect computers, printers, IP phones, access points, and other Ethernet‑enabled devices at speeds up to 1 Gbps per port.
• PoE+ Support: Delivers power and data through one Ethernet cable to devices, reducing the need for extra power adapters and cable clutter.
• 2 × 2.5GE SFP Uplink Ports: Allow 2.5 Gigabit SFP connections for flexible network growth.
• 2 × 10GE SFP+ Uplink Ports: Let you connect to network backbones, aggregation switches, and other compatible devices at high speed.
• Managed Network Switching: Offers configuration and monitoring tools so administrators can manage devices and traffic.
• Fanless Design: Uses natural heat dissipation; no fans, so it works well in noise‑sensitive spaces.
• Built‑in AC Power Supply: Comes with an internal AC power supply so you do not need a separate external adapter.
• Flexible Installation: Can be set up on a desktop, wall‑mounted, or rack‑mounted depending on the mounting setup.
• Network Security Features: The HUAWEI eKitEngine S310S-8P4JX includes security features like DoS attack protection and DHCP snooping.
• Simplified Management: Huawei eKit tools help you configure and monitor the HUAWEI eKitEngine S310S-8P4JX with different management options based on software version and deployment.

Technical Specifications

• Model | S310S-8P4JX
• Product Type | Managed Gigabit Ethernet Switch
• Ethernet Ports | 8 × 10/100/1000BASE‑T PoE+
• 2.5G Uplink Ports | 2 × 2.5GE SFP
• 10G Uplink Ports | 2 × 10GE SFP+
• PoE Standard PoE+ supported on the 8 Ethernet ports
• PoE Power Budget | 128 W
• Switching Capacity | 66 Gbps (Indonesian datasheet)
• Packet Forwarding Rate | 49 Mpps (Indonesian datasheet)
• Power Supply Built‑in AC power supply
• Rated AC Input | 100–240 V AC, 50/60 Hz
• Cooling | Fanless, natural heat dissipation
• Dimensions (W × D × H) | 320 × 210 × 43.6 mm
• Chassis Height | 1U
• Net Weight | Approximately 2.53 kg, excluding packaging
• Installation | Desktop, wall mounting or rack mounting
• Operating Temperature | –5 °C to +40 °C under the specified altitude conditions
• Storage Temperature | –40 °C to +70 °C
• Relative Humidity | 5 %–95 % non‑condensing

Where Can You Use the HUAWEI eKitEngine S310S-8P4JX?

1. Office Networks – Use the HUAWEI eKitEngine S310S-8P4JX to connect desktops, printers, IP phones and other office gear. PoE+ ports also power wireless access points.

2. CCTV and IP Surveillance Systems – Connect IP cameras and supply power through Ethernet. The 10GE uplinks can provide high‑speed connections to the network. Check camera power requirements and network bandwidth before deployment.

3. Hotels and Hospitality – Build network connections for reception areas, back‑office equipment, wireless access points and other compatible devices. The fanless design is helpful, in locations where operating noise matters.

4. Schools and Training Centres – Connect computers, access points, printers and other network equipment in classrooms, offices and shared learning spaces.

5. Retail Shops and Restaurants – Connect point‑of‑sale terminals, computers, wireless access points and compatible security cameras while keeping network connections organised.

6. Small Business Server Rooms – Use the 10GE SFP+ uplinks to connect the switch to a core switch or network aggregation layer. This can help reduce uplink bottlenecks as network traffic increases.

7. Small and Medium‑Sized Enterprise Networks – Deploy the HUAWEI eKitEngine S310S-8P4JX across floors or departments using its uplinks to keep traffic smooth as the network grows.

Deploy the switch in any place that needs a Gigabit Ethernet switch, PoE+ connectivity, network management, and high‑speed uplinks while keeping the design compact and fanless.

What is a Gigabit Ethernet switch?

A Gigabit Ethernet switch connects wired devices inside a local area network (LAN). Its Ethernet ports can run at 10 Mbps, 100 Mbps, or 1 Gbps depending on which device is attached and the network conditions.

• What is PoE+?

Power over Ethernet Plus or PoE+ lets compatible network equipment get both power and data through an Ethernet cable. PoE+ is handy for IP cameras, wireless access points and IP phones. The device must accept a PoE standard that matches, and the total power used must stay below the switch’s PoE budget.

• What is the difference between SFP and SFP+?

SFP and SFP+ are interface types for network transceivers and direct‑attach cables. The 2.5GE SFP ports work with 2.5 Gigabit modules while the 10GE SFP+ ports work with 10 Gigabit connections. Choosing the transceiver or cable depends on distance, fibre type and the equipment on the other side.

Why choose a managed switch?

A managed switch gives you configuration and monitoring options that go beyond plug‑and‑play. With the software and settings, administrators can use features such as VLANs, traffic control and security policies to organise and safeguard the network.

• Why is a fanless switch useful?

A fanless switch relies on natural heat dissipation rather than cooling fans. That cuts down on fan noise. Removes moving parts, making it a good choice for offices, reception areas and other quiet settings. However, it still needs ventilation and must be installed within the recommended operating conditions.

Size, Weight and Installation

The HUAWEI S310S-8P4JX is 320 mm wide, 210 mm deep, and 43.6 mm high, and it weighs around 2.53 kg without packaging.

Because it is 1U tall, the switch fits well in network setups. It can be placed on a desk, on a wall, or in a rack. The mounting hardware comes with the package.

For performance, put the unit in a ventilated spot and leave enough space around it so heat can flow naturally.

Why Do You Need the HUAWEI S310S-8P4JX?

If your business must link wired devices, power compatible network gear, and keep a high‑speed link to the rest of the network, the HUAWEI S310S-8P4JX combines all those functions in one managed switch.

The switch has eight PoE+ Gigabit ports that make device setup easier, and its 2.5GE SFP and 10GE SFP+ uplinks give flexibility when linking to high‑speed network infrastructure. The built‑in AC power supply and fanless design keep installation simple and operation quiet.
