HUAWEI S220S-8P4J (8*10/100/1000BASE-T ports (128 W PoE+), 4*2.5GE SFP ports, built-in AC power, Fanless)

The Huawei S220S-8P4J is a powerful 8-port Gigabit PoE+ Ethernet switch. It is designed for offices, CCTV systems, and IP device deployments. This switch delivers Gigabit connectivity and efficient PoE power delivery in a silent and energy-saving design.

It is perfect for businesses that need wired networking with PoE support. This switch does not require setup or high maintenance.

Key Highlights

• 8 Gigabit Ethernet PoE+ ports for high-speed device connectivity
• 4 2.5GE SFP uplink ports for fiber expansion
• Up to 128W total PoE power budget
• It has a design for silent operation
• It has plug-and-play enterprise-grade performance
• Built-in AC power supply, so no external adapter is required

Key Specifications

• Model: HW S220S-8P4J
• Part Number: 98012471

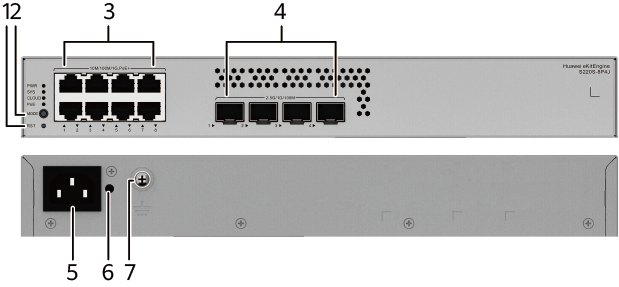

The Huawei S220S-8P4J has the following ports

• 8 10/100/1000BASE-T RJ45 PoE+ ports
• 4 2.5GE SFP optical uplink ports

It supports IEEE PoE+. The maximum power per port is 30W. The total PoE power budget of this switch is 128W.

It has a built-in AC power module. The input voltage is 100–240V AC. The frequency is 50/60Hz. The Huawei S220S-8P4J is fanless with natural heat dissipation. The Huawei S220S-8P4J has a metal casing for durability. It has a 1U compact form factor.

The dimensions of this switch are 320 × 210 × 43.6 mm. The weight of the Huawei S220S-8P4J is 2.53 kg.

The operating temperature of this is 5°C to +40°C. The humidity is 5%–95% (non-condensing). The altitude support of this switch is up to 5000 m.

Key Features

1. It provides high-speed Gigabit network performance. The HW S220S-8P4J switch provides 1Gbps Ethernet connectivity. This makes the Huawei S220S-8P4J suitable for offices, surveillance systems, access points, and business networks.

2. It has PoE+ power for devices. It also supports Power over Ethernet (PoE+). It can directly power devices such as IP CCTV cameras, wireless access points, VoIP phones, and IoT devices.

3. It has fiber uplinks. The built-in 2.5GE SFP uplink ports of the S220S-8P4J allow connection to backbone networks or fiber infrastructure for higher-speed data transmission.

4. It is operational. The Huawei S220S-8P4J switch operates silently because it has no fan. This makes the HW S220S-8P4J ideal for offices, meeting rooms, retail shops, and indoor security setups.

5. It has enterprise build quality. This switch is designed with performance and long lifecycle reliability. This ensures network uptime for business-critical operations.

It is suitable for a range of environments. These include medium-sized offices, CCTV surveillance systems, retail shops, hotels, educational institutions, clinics, and smart building networks.

Some technical knowledge

• PoE+ sends both power and data through a cable.
• SFP ports are used for fiber optic connections for long-distance, high-speed networking.
• Gigabit Ethernet provides 1Gbps speed for smooth network performance.
• Fanless cooling uses airflow, reducing noise and maintenance needs.

Why do customers need the Huawei S220S-8P4J?

It gives you everything in one device. This switch powers your devices directly, so you do not need adapters. It ensures stable network performance. The S220S-8P4J reduces installation cost and cable clutter. It works silently in any environment. The S220S-8P4J provides ready fiber uplink flexibility.
