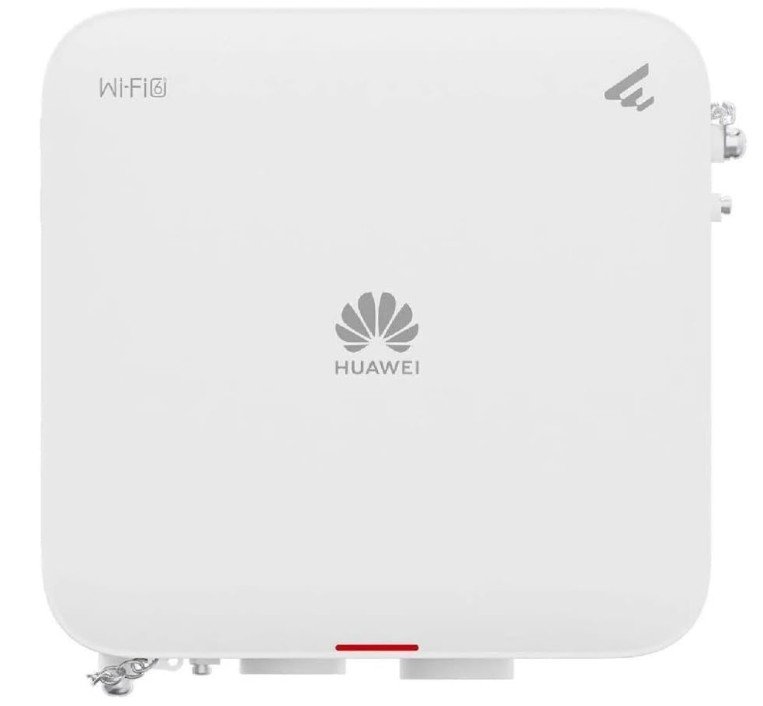

Huawei eKitEngine AP761 Access Point

The Huawei eKitEngine AP761 Outdoor Access Point is a powerful Wi-Fi 6 device that provides strong and stable internet coverage over long distances in open areas. It is made for networks that are demanding, such as stadiums, public areas, and industrial zones, where regular indoor access points just cannot handle it.

The Huawei AP761 is built to be tough with a design that can withstand bad weather like rain, heat, dust, and wind. This means it can deliver connectivity even in harsh conditions.

Key Features

Here are the key features of the Huawei eKitEngine AP761:

• The latest Wi-Fi 6 technology for use
• It can operate on two frequency bands: 2.4 GHz and 5 GHz
• The total wireless speed is up to 1.77 Gbps, which is really fast
• It has built-in gain directional antennas for better signal strength
• The HW AP761 supports MU-MIMO and OFDMA technology for efficient network use
• It can be deployed in modes: Fit, Fat, or Cloud management
• The Huawei eKitEngine AP761 has an industrial-grade design that can withstand outdoor environments
• It is waterproof and dustproof, and has strong surge protection
• The Huawei eKitEngine AP761 can support up to 256 users, which is a lot
• It provides a range of stable outdoor coverage, which is really important for big areas
• The HW AP761 has uplink options, including GE RJ45 and GE SFP
• It also has roaming and interference optimization for better network performance
• The Huawei eKitEngine AP761 is easy to install with PoE, which means you only need one cable for power and data

Specification

The specifications of the Huawei eKitEngine AP761 are:

• Brand | Huawei
• Product Name | Huawei eKitEngine AP761
• Product Type | Outdoor Wireless Access Point
• Wi-Fi Standard IEEE 802.11a/b/g/n/ac/ax, which is also known as Wi-Fi 6
• Frequency Bands | 2.4 GHz and 5 GHz
• MIMO | 2×2 on both bands
• Max Wireless Speed | Up to 1.77 Gbps
• Antenna Type | Built-in directional antennas
• Ethernet Ports | 1 x GE RJ45 + 1 x GE SFP, depending on the model
• Power Supply | PoE, which is a type of power over Ethernet
• Max Power Consumption | Around 17-18 W
• Max Users | Up to 256
• Recommended Users | Around 100-130
• Protection Rating | IP68, which means it is waterproof and dustproof
• Surge Protection | 6 kA
• Operating Temperature | From -40°C to +65°C
• Installation | Wall or pole mounting
• Management | Cloud, Fit or Fat modes

The Huawei eKitEngine AP761 is built using Wi-Fi 6 technology, which is really fast and efficient. It uses OFDMA to split the network for many users, MU-MIMO to serve multiple devices at the same time, and high-gain directional antennas for a stronger signal. The Huawei AP761 also has RF optimization to reduce interference and improve stability.

In terms of the Huawei eKitEngine, AP761 provides fast and stable outdoor Wi-Fi for large crowds and wide areas without any signal drop.

Different Places

You can use the Huawei AP761 in different places, such as:

• Stadiums and sports arenas
• Public parks and open spaces
• University campuses, especially in outdoor zones
• Smart city Wi-Fi networks
• Tourist attractions and beaches
• Outdoor cafes and restaurants
• Industrial yards and warehouses
• Parking areas and transport hubs
• Shopping streets and outdoor malls
• Temporary outdoor event setups

The Huawei eKitEngine AP761 is designed for wall or pole mounting. Has a weatherproof industrial-grade housing. It is built to withstand rain, dust, sand, high heat, and cold temperatures.

The Huawei AP761 also supports cable PoE installation, which makes it easy to set up.

The size and weight of the Huawei eKitEngine AP761 are:

• Dimensions: 200 x 200 x 69 mm
• Weight: around 1.9 kg
• Protection: IP68 industrial outdoor rating

Customers need the HW AP761 because outdoor connectivity is always more challenging than networking. The HW AP761 solves this problem by offering stable long-range outdoor Wi-Fi coverage, reliable performance in harsh weather conditions, smooth connectivity for a high number of users, reduced network downtime in public environments, and lower installation cost, with a PoE single-cable setup. The Huawei eKitEngine AP761 also provides enterprise-grade security and performance.
