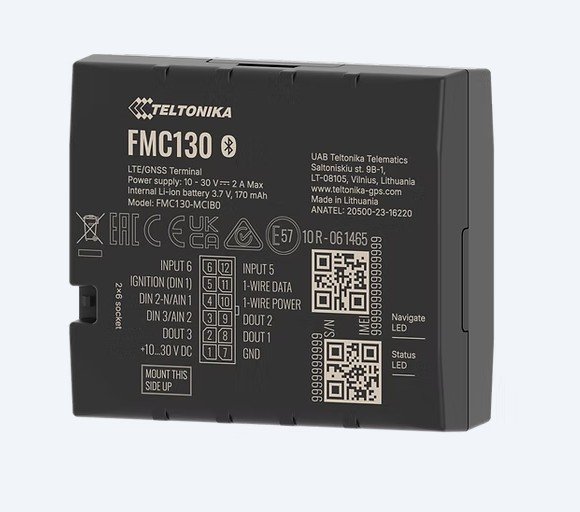

TELTONIKA FMC130

The Teltonika FMC130 is a 4G LTE Cat 1 GPS tracker made for professional vehicle tracking, fleet management, and vehicle telematics. It helps companies keep track of vehicles as they move, get vehicle data, and make it easier to control fuel usage, driver activity, and overall fleet operations.

The FMC130 has built-in GNSS positioning, 4G LTE connectivity, Bluetooth 4.0 Low Energy, digital and analog inputs, digital outputs, and support for a CAN adapter. This means it can connect to different vehicle sensors and accessories. The small size of the device makes it easy to put in vehicles when there is not much space. The device also has a built-in battery, internal GNSS and cellular antennas, and 128 MB of internal flash memory to store tracking data.

Whether a person is looking for a vehicle GPS tracking device, a fleet tracking solution, a fuel monitoring system, or a flexible 4G vehicle telematics device, the Teltonika FMC130 is made for commercial use.

Key Features

• 4G LTE Cat 1 GPS tracker for vehicle connectivity
• Built-in GNSS positioning for accurate vehicle location tracking
• Real-time GPS tracking for monitoring vehicle movement and location
• CAN adapter support for collecting important vehicle data
• Supports accurate fuel usage monitoring with impulse input
• 3 digital inputs for connecting vehicle sensors and accessories
• 2 analog inputs for additional vehicle monitoring applications
• 3 digital outputs for external devices such as relays, buzzers and alarm lights
• Bluetooth 4.0 + Low Energy (LE) for compatible Bluetooth accessories and sensors
• Built-in movement sensor
• 1-Wire support for compatible temperature sensors and iButton devices
• Built-in 170 mAh rechargeable Li-Ion backup battery
• 128 MB internal flash memory
• Internal high-gain GNSS and cellular antennas
• Micro-SIM + eSIM support
• Compact size for installation in restricted spaces
• Overvoltage protection for vehicle electrical systems
• Suitable for professional fleet and vehicle telematics applications

Main Specifications

• Specification Teltonika FMC130
• Product Type Advanced 4G LTE GPS Tracker
• Network 4G LTE Cat 1 with 2G/GSM fallback depending on modem/region
• Positioning Integrated GNSS
• GNSS Antenna Internal high-gain antenna
• Cellular Antenna Internal high-gain antenna
• Bluetooth Bluetooth 4.0 + LE
• Digital Inputs 3
• Negative Inputs 1
• Impulse Inputs 2
• Analog Inputs 2
• Digital Outputs 3
• CAN Adapter Input 1
• 1-Wire 1
• SIM Micro-SIM + eSIM
• Internal Memory 128 MB flash
• USB Micro-USB 2.0
• Backup Battery 170 mAh Li-Ion, 3.7 V
• Power Supply 10–30 V DC
• Internal Fuse 3 A, 125 V
• Protection Rating IP41
• Dimensions 65 × 56.6 × 20.6 mm
• Weight 55 g
• Operating Temperature without battery -20°C to +85°C
• Operating Temperature with battery -20°C to +40°C
• Operating Humidity 5%–95% non-condensing

Specifications are based on Teltonika’s official FMC130 documentation.

4G GPS Tracking and Connectivity

The FMC130 uses 4G LTE Cat 1 connectivity to send tracking and vehicle information to a fleet management platform or tracking server. Depending on the modem and regional version, the device also supports fallback connectivity through older cellular networks.

This makes the FMC130 suitable for businesses that need a 4G vehicle tracking device for commercial fleets and professional telematics applications.

Accurate Vehicle Location Tracking

The integrated GNSS receiver allows the FMC130 to figure out the vehicle’s position and send tracking information to a platform.

The device supports data collection based on factors such as:

• Time
• Vehicle speed
• Distance
• Direction/angle
• Ignition status
• Input/output events

This allows fleet operators to get useful tracking information without constantly sending extra data.

Fuel Monitoring

One of the benefits of the FMC130 is its support for fuel usage monitoring.

The device can use its inputs for accurate fuel-flow-meter data collection. This is very helpful for vehicles and machines where fuel consumption’s a big operating cost.

Teltonika specifically mentions fuel management applications for high-fuel-use equipment like:

• Construction vehicles
• Cranes
• Mining equipment
• machinery

By watching fuel usage, companies can find unusual consumption and improve overall fleet efficiency.

CAN Bus Vehicle Data

The FMC130 supports a CAN adapter allowing companies to get selected vehicle information through CAN solutions.

When used with the Teltonika LV-CAN200 adapter, available vehicle information can include:

• Fuel level
• Odometer
• VIN
• Fuel consumption
• Engine RPM
• Engine temperature
• Handbrake status

This gives fleet managers more than a vehicle location. It can provide information about how the vehicle is being used and how it is performing.

Flexible. Outputs

The FMC130 is built for advanced vehicle monitoring needs.

It has 3 inputs, 2 analog inputs, 2 impulse inputs, and 3 digital outputs. These connections can be used with vehicle sensors and accessories.

The negative input can make it simpler to connect devices like:

• Door sensors
• Alarm buttons
• Seatbelt detection systems
• vehicle accessories

The digital outputs can also be set up for uses like immobilisation, alarms, warning lights and door-lock control.

Bluetooth Sensor Support

The built-in Bluetooth 4.0 + LE feature allows the FMC130 to work with Bluetooth accessories and sensors.

Teltonika lists support for items like:

• Temperature and humidity sensors
• OBDII dongles
• Inateck barcode scanners
• Universal Bluetooth Low Energy sensors

This makes the FMC130 more than just for basic vehicle location tracking and useful for applications where extra sensor data is needed.

Compact Design for Easy Installation

The Teltonika FMC130 is 65 × 56.6 × 20.6 mm in size and weighs about 55 g including the case and battery.

Its small size makes it good for installation in vehicles where there is not enough space. Teltonika says the device has a small case and is designed for mounting in areas that are hard to reach.

Backup Battery

The FMC130 has a 170 mAh 3.7 V Li-Ion backup battery.

The backup battery can help the device keep working when the vehicle’s main power is not there giving a layer of tracking continuity.

Where Can You Use Teltonika FMC130?

The FMC130 is good for different professional vehicle and asset tracking uses.

• Fleet Management

Keep track of company vehicles, see where they are moving, and get information from the fleet.

• Delivery

Track delivery vehicles and see where they are moving. The device can also be used in theft and delivery fleet solutions.

• Car Rental & Leasing

Use vehicle GPS tracking to watch rental and leased vehicles and get control over how they are used.

• Heavy Equipment

The FMC130 is very useful for construction equipment where fuel use, machine location, and activity need to be watched.

• Agriculture

Track agricultural machines like tractors and other equipment. Fuel monitoring and Bluetooth accessories can add information to the tracking solution.

• Mining

For mining vehicles and machines, the device can offer location tracking. Help with fuel monitoring uses.

• Cranes and High-Fuel-Use Machines

Impulse-based fuel monitoring makes the FMC130 good for machines where fuel use’s a big operating cost.

• Utility & Service Vehicles

Track field service. See where they are moving, helping companies manage mobile teams and vehicle operations.

• Driver. Vehicle Monitoring

The device can get vehicle-related info and support driver-behavior monitoring uses, including settings for driving parts.

Technical Knowledge – How Does FMC130 Work?

The FMC130 is put inside a vehicle. Connected to the vehicle’s power and, if needed, to vehicle sensors or compatible accessories.

The basic process is simple:

Vehicle → FMC130 → Mobile Network → Tracking Platform → Customer

• The FMC130 gets power from the vehicle.
• Its GNSS receiver finds the vehicle’s location.
• The device gets selected vehicle and sensor info.
• Data is. Processed by the tracker.
• The information is sent through the network.
• A tracking platform shows the vehicle info to the fleet operator.

The device can also use events like ignition, speed, distance, angle, and input changes to decide when to collect or send data.

Why Do Customers Need the Teltonika FMC130?

A vehicle GPS tracker is not just about knowing where the vehicle is. For a business, the real value is having control over vehicles, drivers, fuel and operating costs.

The Teltonika FMC130 is a choice when more than basic GPS tracking is needed.

It can help customers:

• Know where vehicles are
• Improve fleet visibility
• Monitor vehicle usage
• Track vehicle movement in time
• Monitor fuel consumption
• Collect some CAN bus vehicle data
• Connect more sensors
• Check doors and other vehicle inputs
• Help with anti-theft solutions
• Lower unnecessary vehicle operating costs
• Improve fleet management and control over operations

Its mix of 4G LTE connectivity, GNSS tracking, fuel monitoring, CAN adapter compatibility, Bluetooth, flexible inputs and outputs, small size, and backup battery makes it a flexible solution for professional vehicle tracking and fleet telematics.
