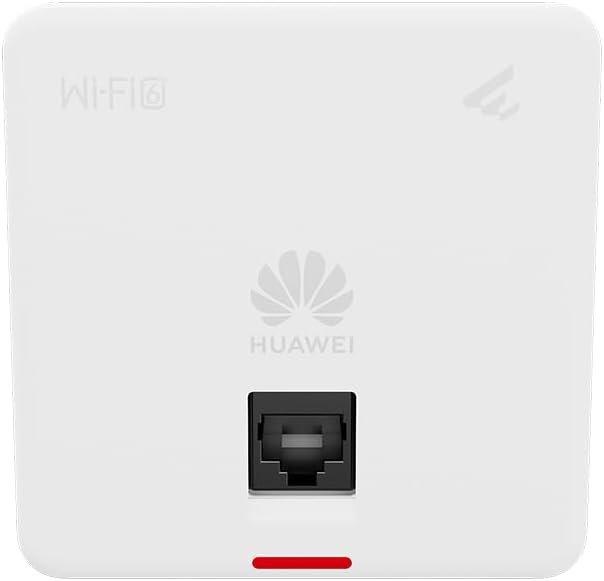

HUAWEI AP160 WIRELESS LAN EQUIPMENT

The HUAWEI AP160 is a Wi-Fi 6 dual-band wall plate access point. It is made to deliver wireless connectivity in hotel rooms, offices, commercial spaces, and other indoor locations.

This device supports both 2.4 GHz and 5 GHz Wi-Fi bands. It offers a combined data rate of up to 1.775 Gbps. Its slim size of 86 × 86 mm makes it fit perfectly into 86 mm junction boxes. This makes it a smart choice where strong Wi-Fi performance and a clean look are both important.

Key Specifications

• Brand | Huawei
• Model | AP160
• Product Type | Wi-Fi 6 Wireless LAN Access Point
• Product Category | Wall Plate Access Point
• Part Number | 50086816
• Wi-Fi Standard | 802.11b/g/n/ax (2.4 GHz) 802.11a/n/ac/ac Wave 2/ax (5 GHz)
• Frequency Bands | 2.4 GHz + 5 GHz
• Radio | Dual-radio
• Maximum Device Rate | 1.775 Gbps
• 2.4 GHz MIMO | 2 × 2
• 5 GHz MIMO | 2 × 2
• Maximum Channel Bandwidth | 40 MHz (2.4 GHz), 80 MHz (5 GHz)
• Recommended Users | 48
• Maximum Access Users | 128
• Optimal Coverage Distance 15 m
• Antenna | Built-in smart antennas
• Ethernet Ports | 2 × GE RJ45
• Power | PoE 802.3af
• Maximum Power Consumption | 9.1 W
• Maximum Transmit Power | 20 dBm combined
• Installation | 86 mm junction box
• Dimensions | 86 × 86 × 42.5 mm
• Weight | 0.14 kg
• Operating Temperature | 0°C to 40°C
• Operating Humidity | 5%–95% RH, non-condensing

Huawei’s official specs list the AP160 with a maximum speed of 1.775 Gbps. It supports up to 128 users. It is recommended for 48 users to ensure smooth performance.

Main Features

• Wi-Fi 6 (802.11ax) technology for modern wireless networks
• Dual-band support for 2.4 GHz and 5 GHz
• Up to 1.775 Gbps device rate
• 2 × 2 MIMO on both bands
• Built-in smart antennas for better signal coverage
• Supports up to 128 connected users
• Recommended for up to 48 users for best results
• 15 m optimal coverage range
• Two Gigabit Ethernet RJ45 ports
• PoE 802.3af power supply
• Compact 86 × 86 mm wall-plate design
• Low power consumption of 9.1 W
• Ideal for hotel rooms and commercial indoor settings
• Clean installation that matches wall outlets

Where Can HUAWEI AP160 Be Used?

The AP160 is especially useful in areas where guests need strong Wi-Fi without the need for large ceiling-mounted devices.

• Guest Rooms

The wall plate design works well in hotel rooms. It brings Wi-Fi close to guests while keeping the setup neat and unobtrusive.

• Offices

It can provide access for office workers using laptops, smartphones, tablets, and other devices.

• Commercial Buildings

The AP160 is a fit for shops, small businesses and other commercial spaces that need dependable Wi-Fi.

• Meeting & Training Rooms

It can support laptops, mobile devices, and other equipment used during meetings or training sessions.

• Multi-Dwelling Spaces

Its small wall-mounted form makes it suitable for homes, apartments, and buildings where space and looks matter.

Huawei describes the AP160 as a Wi-Fi 6 wall plate access point designed for hotel rooms and commercial indoor environments.

Technical Knowledge – What Does Wi-Fi 6 Mean?

Wi-Fi 6 is the IEEE 802.11ax standard. It is the generation of Wi-Fi technology. It is built to handle today’s network demands with connected devices and higher data usage.

The AP160 uses two radios:

• 2.4 GHz: 2 × 2 MIMO with up to 40 MHz channel bandwidth
• 5 GHz: 2 × 2 MIMO with up to 80 MHz channel bandwidth

Under Huawei’s conditions, the combined device rate reaches up to 1.775 Gbps.

What Is a Wall Plate Access Point?

A wall plate access point is made to install into a wall junction box. It does not take up desk space. Need ceiling mounting.

The HUAWEI AP160 measures 86 × 86 × 42.5 mm. This allows it to deliver enterprise-level performance in a small, discreet package.

• Ports & Power

The AP160 has two Gigabit Ethernet RJ45 ports. It uses Power over Ethernet (PoE) to get power through the network cable. It works with PoE equipment that supports 802.3af.

Huawei specifies 802.3af PoE as the power method. The maximum power consumption is 9.1 watts.

Size & Weight

• Dimensions: 86 × 86 × 42.5 mm
• Weight: 0.14 kg (140 grams)
• Installation: 86 mm junction box

The size is one of the main benefits of the AP160. It is perfect for hotel rooms and commercial areas where a clean and discreet setup is needed.

Why Does a Customer Need the HUAWEI AP160?

If a customer wants modern Wi-Fi in a compact wall-mounted design, the HUAWEI AP160 is a strong choice.

It combines Wi-Fi 6 dual-band connectivity, Gigabit Ethernet, smart antennas, and PoE power in an 86 × 86 mm access point. This makes it ideal for hotels, offices, and commercial spaces where reliable Wi-Fi is needed without installations.

For businesses upgrading from wireless access points, the AP160 offers a modern Wi-Fi 6 platform. It keeps the installation simple and neat at the same time.
