UBIQUITY U6 Mesh Pro Indoor/outdoor WiFi 6 AP with 4 spatial streams

The Ubiquiti UniFi U6 Mesh Pro is a feature-rich dual-band WiFi 6 indoor-outdoor access point featuring four spatial streams and an omnidirectional super antenna integrated within to provide strong wireless coverage and an unprecedented amount of simultaneous supported clients.

Key Features

WiFi Standard: 802.11ax (WiFi 6)

Spatial Streams: 4 (2×2 MU-MIMO for each of the 2.4 GHz and 5 GHz frequency bands)

• Maximum Data Rates:
  2.4 GHz: 573.5 Mbps (BW40)
• 5 GHz: 2.4 Gbps (BW160)

Coverage Area: Up to 185 m² (2,000 ft²)

Simultaneous Clients: Supports 350+ devices

Antenna Gain:

• 2.4 GHz: 8 dBi
• 5 GHz: 8 dBi

Transmit Power:

• 2.4 GHz: 22 dBm
• 5 GHz: 27 dBm

Networking Interfaces: (2) Gigabit Ethernet RJ45 ports (1 uplink, 1 passthrough)

Power Method: PoE (Power over Ethernet)

Maximum Power Consumption: 9W

Mounting Options: Wall and pole mounts included

Weatherproofing: IPX6-rated enclosure

Operating Temperature: -30 to 60°C (-22 to 140°F)

Operating Humidity: 5% to 95% noncondensing

Weight: 819 g (1.8 lb)

Key Features

• WiFi 6 Technology: Enhanced performance and efficiency with OFDMA and MU-MIMO support.
• High Client Capacity: Supports over 350 devices at a time, ideal for high-density environments.
• Integrated Super Antenna: Provides extensive coverage with omnidirectional signal radiation.
• Dual Gigabit Ethernet Ports: Includes a passthrough port for flexible network configurations.
• Flexible Mounting: Suitable for pole or wall mounting, indoors or outdoors.
• Weather-Proof Design: IPX6-rated enclosure ensures reliable performance in various weather situations.
• Enhanced Security: Supports WPA3, WPA2, and WPA-Enterprise encryption methods.
• Guest Network Capabilities: Captive portal, guest isolation, and voucher-based authentication.
• Effortless Integration: Controlled by the UniFi Network application for a single point of control and monitoring.​

Technical Specifications

Supported WiFi Standards: 802.11a/b/g/n/ac/ax

Maximum BSSIDs: 8 per radio

Channel Bandwidths: HT20/40, VHT20/40/80/160, HE20/40/80/160 MHz

Advanced Features:

• Band Steering
• Fast Roaming (802.11r)
• BSS Transition Management (802.11v)
• Radio Resource Management (802.11k)
• Private Pre-Shared Key (PPSK)
• Dynamic VLAN assignment via RADIUS
• WiFi scheduling and client device isolation

Package Contents

• Ubiquiti UniFi U6 Mesh Pro Access Point
• Wall and pole mounting hardware

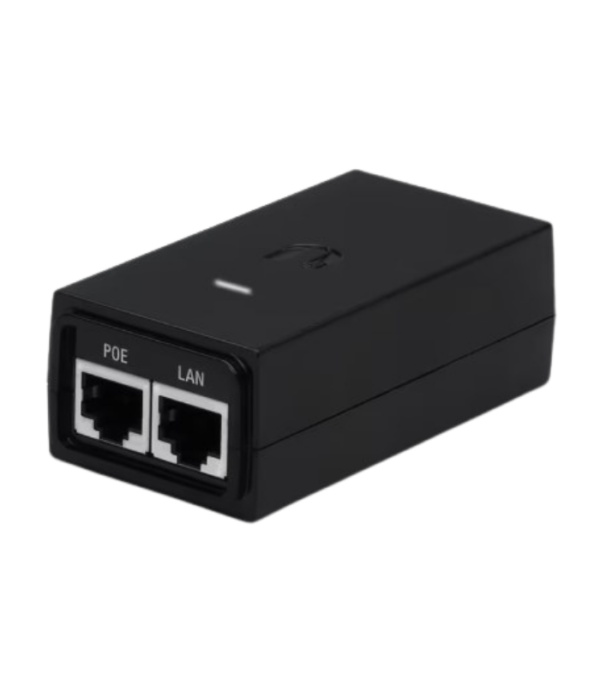

• 48V, 0.5A PoE adapter

Use Cases

• Enterprise Environments: Ideal for offices, campuses, and commercial settings requiring high-capacity wireless coverage.
• Outdoor Venues: Suitable for parks, stadiums, and outdoor event spaces due to its weather-resistant design.
• Hospitality: The best for hotels and resorts that need secure guest WiFi with high security features.
• Educational Institutions: The best for high-density client installations like classrooms and lecture halls.
