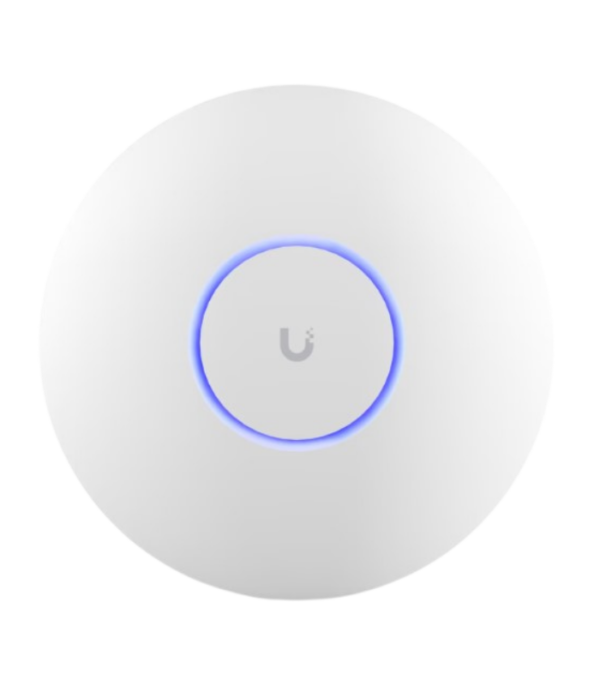

Ubiquity U6+ Access Point, 1x GbE RJ45 port, 2.4 & 5GHz, 802.11a/b/g/n/ac/ax

Ubiquiti UniFi U6+ is a compact, dual-band WiFi 6 access point designed to deliver high-performance wireless connectivity to small and medium-sized businesses. With 2×2 MU-MIMO on both the 2.4 GHz and 5 GHz bands, it delivers enhanced capacity and coverage, making it an ideal solution for high-density installations.

Key Specifications

WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi 6)

MIMO Configuration: 2×2 MU-MIMO on 2.4 GHz and 5 GHz bands

Maximum Data Rates:

• 2.4 GHz: 573.5 Mbps
• 5 GHz: 2.4 Gbps

Coverage Area: Up to 140 m² (1,500 ft²)

Concurrent Clients: Supports 300+ devices

Antenna Gain:

• 2.4 GHz: 3 dBi
• 5 GHz: 5.4 dBi

Transmit Power:

• 2.4 GHz: 23 dBm
• 5 GHz: 23 dBm

Networking Interface: (1) Gigabit Ethernet RJ45 port

Power Method: Power over Ethernet (PoE)

Max Power Consumption: 9W

Mounting Options: Ceiling and wall mounts included

Operating Temperature: -30 to 60°C (-22 to 140°F)

Operating Humidity: 5% to 95% noncondensing

Dimensions: Ø160 x 33 mm (Ø6.3 x 1.3″)

Weight:

• Without mount: 338 g (0.75 lb)
• With mount: 413 g (0.91 lb)​

Key Features

• Dual-Band WiFi 6 Support: Enhanced performance and efficiency with OFDMA and MU-MIMO technologies.
• High Client Capacity: Over 300 devices simultaneously, perfect for high-density environments.
• Advanced Security: WPA3, WPA2, and WPA-Enterprise encryption standards supported.
• Guest Network Features: Captive portal, guest isolation, and voucher-based authentication supported.
• Seamless Integration: Managed by the UniFi Network app for centralized control and monitoring.
• Flexible Mounting: Supports ceiling or wall mounting, with mounting hardware included.
• Power-Efficient: Low power draw and PoE support make it simple to install.

Technical Specifications

Supported WiFi Standards: 802.11a/b/g/n/ac/ax

Channel Bandwidths: HT20/40, VHT20/40/80/160, HE20/40/80/160 MHz

Advanced Features:

• Band Steering
• Fast Roaming (802.11r)
• BSS Transition Management (802.11v)
• Radio Resource Management (802.11k)
• Private Pre-Shared Key (PPSK)
• Dynamic VLAN assignment via RADIUS
• WiFi scheduling and client device isolation

Package Contents

• Ubiquiti UniFi U6+ Access Point
• Wall and ceiling mount hardware

Uses

• Small and Medium-Sized Businesses: Ideal for offices, retail shops, and commercial spaces requiring secure wireless coverage.
• Education Institutions: Supports high-density client environments like lecture halls and classrooms.
• Hospitality: Ideal for resorts and hotels requiring secure guest WiFi with advanced features.
• Home Networks: Enhances home WiFi performance, especially in big homes with many users and devices.
