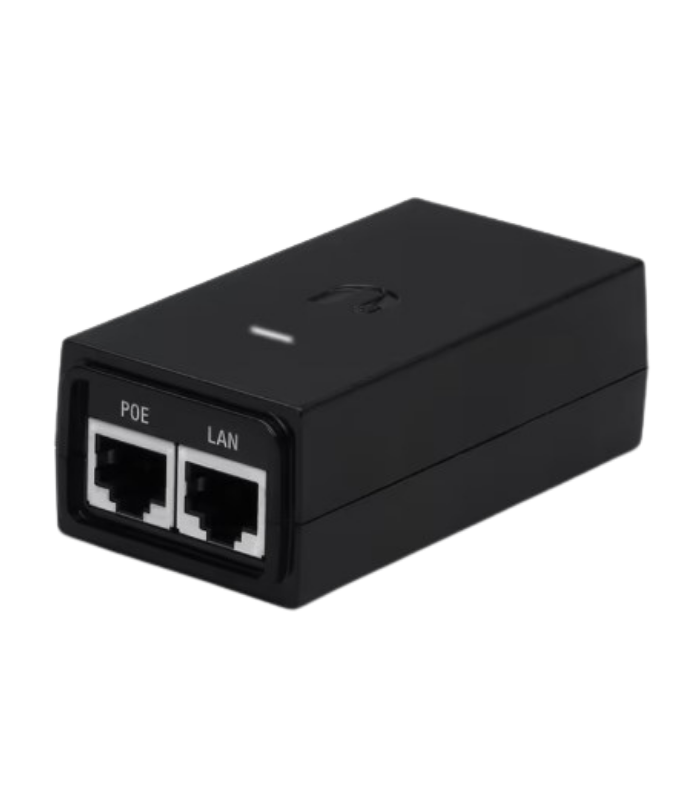

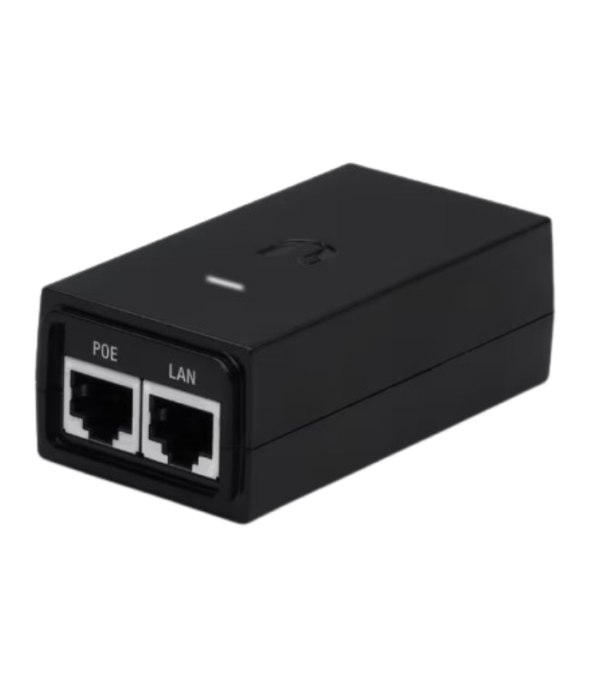

UBIQUITY POE INJECTOR, 24VDC, 12W GIGA

When it comes to a single cable solution, Ubiquiti POE-24-12W-G provides up to 24V DC power. It is used for connecting network devices like Access Points, cameras, or outdoor wireless units that need Power over Ethernet. If you want to save from running separate power lines, it is designed to work with many Ubiquiti devices. In other words, one cable does both: power and data-cleaner, simpler, smarter.

Key Specifications

• Output Voltage: 24 V DC @ 0.5 A (12 W).
• Input voltage: 100-240 V AC, 50/60 Hz.
• Dimensions: 87 × 44 × 29 mm (3.43 × 1.73 × 1.14″).
• Weight: ~92-99 g (≈3.25-3.5 oz).
• Gigabit LAN: Yes, Gigabit LAN Port.
• Remote Reset Capability & Reset Button: Yes
• Temperature: 0 °C to 40 °C (32 °F to 104 °F).
• Surge Protection: Difference & Common Mode; clamping protection 11 V data / 60 V power; max surge discharge 1500 A (8/20µs).

Features & Benefits

• Single-Cable Data & Electricity: This method speeds up and simplifies installations by transmitting both network data and 24V electricity via a single Ethernet cable.
• 12W PoE Output: perfect for low-power networking devices like UniFi access points, security cameras, and outdoor radios.
• Gigabit Network Port: Prevents bottlenecks at slower ports and guarantees your linked device receives full network speed.
• Global AC Input: Enables international deployment by using a standard 100–240V mains.
• It is lightweight and compact, measuring 87 x 44 x 29 mm and weighing less than 100g, which makes it easy to accommodate in network cabinets or small places.
• Inbuilt Protection: Your device and network equipment are shielded from unforeseen spikes and surges by surge and over-current protection.
• Reset and Remote Control Friendly: To assist with remote or unsupervised installs, have a reset button and remote reset functionality.
• Compatible with Ubiquiti Ecosystem: It is a flexible addition to your network configuration since it works with a variety of Ubiquiti PoE devices, such as UniFi, UISP, and outdoor units.

Where to Use It

• Powering an access point (WiFi) in a home or small office where you don’t have a PoE switch.
• Installing an IP camera outdoors or at a remote site where it is not easy to provide power separately
• Very often, an outdoor wireless bridge/radio unit is used, especially when you run Ethernet cable back to the switch.
• In branch offices or remote sites, where you want a clean, minimal installation with one cable back to your main site.
• Any networking scenario where you need a small and reliable PoE injector, not a full PoE switch.

Why You Need It

The easy, cost-effective way to bring power and data to your devices can be done through POE-24-12W-G from Ubiquiti. It is also an ideal device for deploying or managing a network that includes devices that require PoE and don’t already have a PoE-capable switch. Plus, if you can keep your installation neat and tidy, you can provide surge protection. To keep your equipment safe, it helps to deliver data and power over one cable. Plus, the Ubiquiti POE-24-12W-G makes the job both easier and more reliable if you plan to expand your WiFi, add cameras, or set up an outdoor unit.
