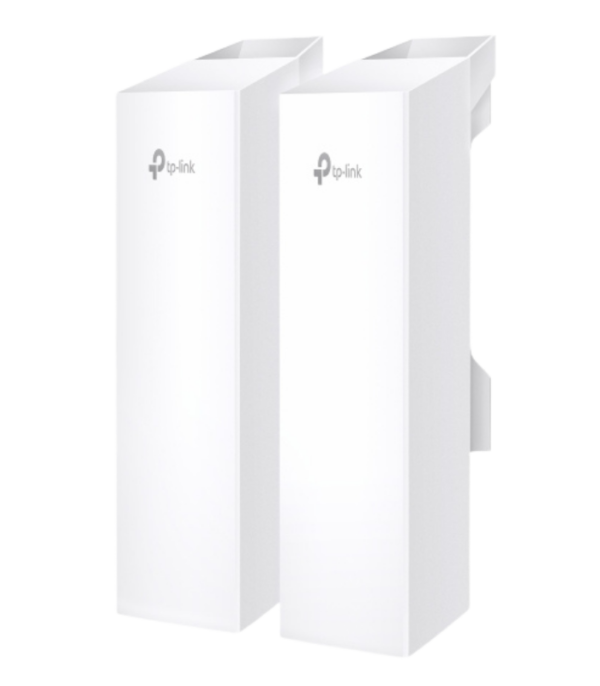

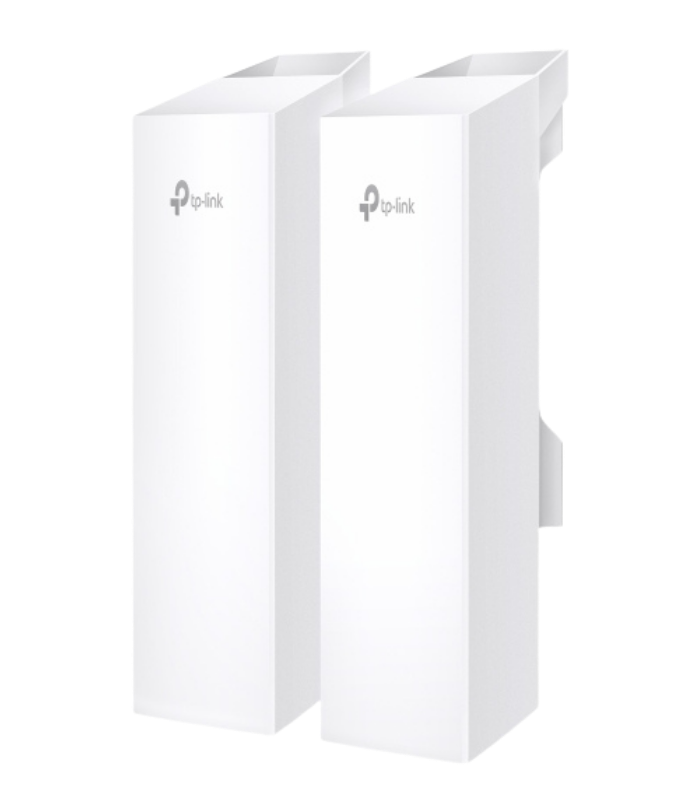

TP-LINK Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point

The TP-Link EAP215-Bridge KIT is a high-performance, long-range wireless bridge designed for indoor and outdoor applications. With the 5 GHz band at speeds of up to 867 Mbps, it offers stable, efficient point-to-point (PtP) and point-to-multipoint (PtMP) links up to 5 km away. Its extremely reliable design with an IP65 weatherproof case and 6kV lightning protection makes it ideal for challenging environments.

Key Specifications

Wireless Standard: IEEE 802.11 a/n/ac

Frequency: 5 GHz

Maximum Wireless Speed: Up to 867 Mbps

Transmission Distance: Up to 5 km (3.1 miles)

Antenna Gain: 11.0 dBi

Ethernet Ports: 3× Gigabit Ethernet Ports

Power Consumption: 11.5W

Weatherproofing: IP65-rated enclosure

Operating Temperature: -40°C to 70°C (-40°F to 158°F)

Key Features

• Long-Range Transmission: Resists secure wireless connections up to 5 km, ideal for connecting distant regions.
• Auto-Pairing: Simplifies setup through automatic pairing of devices to enable quick deployment.
• Intuitive LED Indicators: Provide feedback on real-time signal strength during best positioning.
• Multiple Ethernet Ports: Three Gigabit ports allow high-speed Ethernet connections to the device, e.g., IP cameras.
• Omada SDN Integration: Integration with Omada Software Defined Networking for cloud-based centralized management.
• Robust Outdoor Design: IP65 weather-resistant housing and 6kV lightning protection ensure robustness in harsh environments.
• Simple Power Options: Supports both 12V DC and 24V Passive PoE for simple installation.​

Technical Specifications

Antenna Type: Internal 2×2 dual-polarized directional MIMO antennas

Beamwidth: Horizontal: 35°, Vertical: 35°

Wireless Functions:

• Mesh networking
• MU-MIMO
• Load balancing
• Beamforming
• Airtime fairness
• Multiple SSIDs (up to 8)
• Wireless scheduling
• Reboot scheduling
• RADIUS accounting
• MAC authentication
• Static/Dynamic IP support

Wireless Security:

• VLAN support
• Access control
• Rogue AP detection
• Captive portal authentication
• MAC filtering (up to 4,000 entries)
• WPA/WPA2-Personal/Enterprise

Management:

• Omada App support
• Web-based management
• SNMP v1/v2c/v3
• SSH access
• Omada controller-based cloud access​

Package Contents

• EAP215-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit​

Use Cases

• Surveillance Systems: Extend remote IP cameras to central monitoring stations.
• Remote Offices: Establish high-speed connections from main offices to branch offices.
• Agricultural Environments: Provide connectivity on big farms or orchards.
• Construction Sites: Enable temporary network installation for in-site operations.
• Parking Lots: Provide extension of network coverage for security and management systems.
