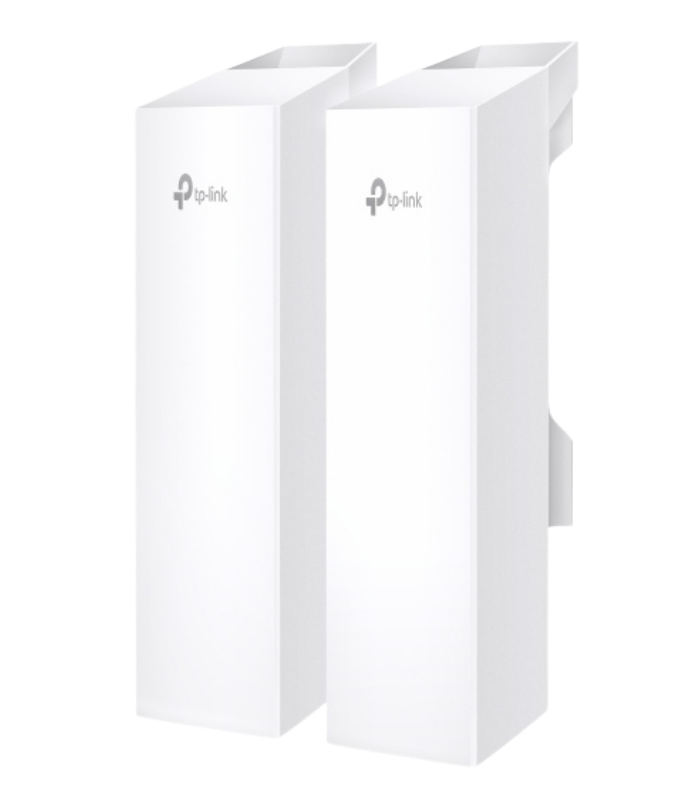

TP-LINK Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point

The TP-Link EAP211-Bridge KIT is an extreme wireless bridge solution for long-range, high-speed point-to-point (PtP) and point-to-multipoint (PtMP) links. It operates at the 5 GHz band at speeds of up to 867 Mbps, ensuring reliable and effective wireless transmission up to 1 km away. Its weatherproof housing of IP65 rating and 6kV lightning protection render it ideal for outdoor use in most conditions.​

Key Specifications

Model: EAP211-Bridge KIT

Wireless Standards: IEEE 802.11 a/b/g/n/ac

Frequency Band: 5 GHz

Signal Rate: Up to 867 Mbps

Antenna: Internal 2×2 dual-polarized directional MIMO antennas

Antenna Gain: 7.0 dBi

Beamwidth: 70° (horizontal) × 70° (vertical)

Ethernet Ports: 3 × Gigabit Ethernet (RJ-45)

Power Supply: 12V DC / 24V Passive PoE (adapter included)

Power Consumption: 11.5 W

Dimensions: 224 × 79 × 60 mm (8.8 × 3.1 × 2.4 in)

Mounting: Pole mounting (accessories included); wall mounting (optional)

Weatherproof Rating: IP65

Operating Temperature: -40°C to 70°C (-40°F to 158°F)

Lightning Protection: 6 kV

Features & Technologies

Long-Distance Transmission: Wireless transmission supports up to 1 km, ideal to bridge remote spaces.

Auto-Pairing: Simple setup through automatic bridge unit pairing.

Agile LEDs: LED lights facilitate optimal alignment upon installation.

Multiple SSIDs: Up to 8 SSIDs supported to segment networks.

Advanced Wireless Functions:

• MU-MIMO
• Beamforming
• Load Balancing
• Airtime Fairness
• Wireless Scheduling
• RADIUS Accounting
• MAC Authentication
• Static/Dynamic IP

Robust Security:

• VLAN Support
• WPA/WPA2-Personal/Enterprise
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• MAC Filtering (up to 4,000 entries)

Management & Deployment

• Centralized Management: Omada Hardware Controller (OC200/OC300) and Omada Software Controller are supported for easy network control.
• Cloud Access: Remote access via cloud-based controllers.
• Web-Based Management: Accessible via HTTP/HTTPS for easy configuration.
• SNMP Support: SNMP v1, v2c, and v3 are supported for network monitoring.
• SSH Access: Advanced Shell (SSH) support for advanced management.
• Zero-Touch Provisioning: Supports rapid deployment without on-site configuration.

Best Use Cases

• Remote Building Connectivity: Link your network to remote offices, barns, or guesthouses without needing to install cables.
• Surveillance Systems: Network IP cameras in parking lots, farms, or building lots for real-time surveillance.
• Temporary Deployments: Ideal for events or building lots that require rapid and secure network deployment.
• Elevator Wi-Fi: Provide stable wireless connections in elevator systems for monitoring or communication.
