TP-LINK JETSTREAM 28-PORT GIGABIT L2+ MANAGED SWITCHED MAX POE

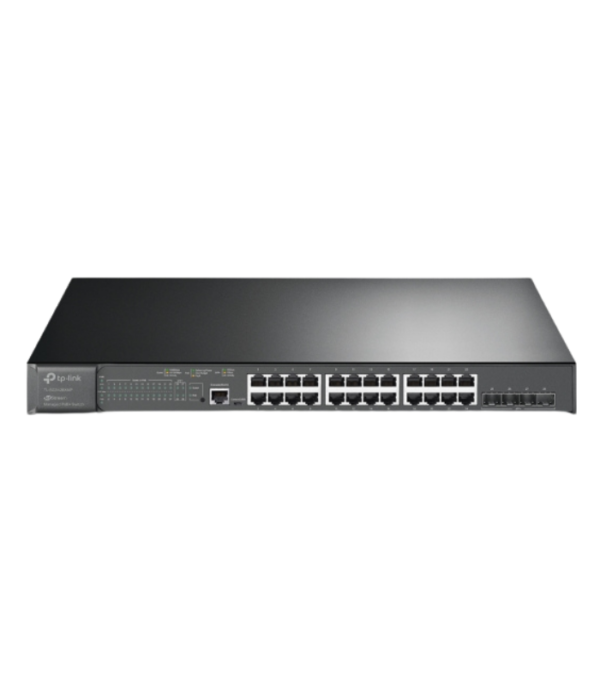

The TP-Link JetStream TL-SG3428MP is a powerful, rack-mountable managed network switch designed for businesses, offices, and any environment that requires stable, high-speed backbone and PoE delivery. With 24 full Gigabit PoE+ ports and a total 384 W power budget, this switch can both transmit data and power PoE devices — all in one compact, reliable unit.

This makes it ideal for powering devices such as IP cameras, wireless access points (Wi-Fi), VoIP phones, and other PoE-enabled equipment — while also delivering strong network performance across multiple devices.

Key Specifications

• Ports 24 × 10/100/1000 Mbps RJ45 ports (PoE+) + 4 × Gigabit SFP slots + 1 × RJ45 console port + 1 × Micro-USB console port
• PoE Standard: 802.3af / 802.3at (PoE+)
• PoE Power per Port: Up to 30 W per port
• Total PoE Power Budget 384 W
• Switching Capacity 56 Gbps
• Packet Forwarding Rate 41.66 Mpps
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frames Up to 9 KB
• MAC address table Up to 8K, some versions up to 16K
• VLAN / L2+ / L3 Features Link Aggregation (static & 802.3ad LACP), Spanning Tree Protocol (STP/RSTP/MSTP), Static Routing, IPv4/IPv6 support, DHCP Server/Relay, Static ARP, Proxy ARP, IGMP/MLD Snooping & more
• QoS & Traffic Management: 8 priority queues, 802.1p / DSCP priority, bandwidth control, rate limiting, flow control, port/flow-based shaping, traffic prioritization
• Security & Network Control: IGMP/MLD snooping, multicast filtering, flow control, VLANs, port mirroring, and network management controls
• Power Supply 100–240 V AC, 50/60 Hz
• Form Factor 1U Rack-mountable switch
• Dimensions 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in)
• Cooling: 2 active cooling fans
• Operating Environment 0–45 °C (32–113 °F), humidity 10–90% non-condensing

Key Features & Benefits

• Full Gigabit + PoE+ support
• High total PoE budget (384 W)
• Managed L2+ / basic L3 capabilities
• Quality of Service & traffic control
• Scalable & future-ready
• Rack-mountable 1U form factor
• Reliable performance

Where & How You Can Use It

This switch is highly versatile and fits many scenarios, including:

• Small to medium business networks
• Security / CCTV systems
• Wireless networks / Wi-Fi deployments
• Branch offices / remote offices
• Mixed device environments
• Network backbone / uplink integration

Why Customers Need This Switch

If you want a reliable, high-capacity, future-ready network backbone — especially in a business, office, or multi-device environment — the TL-SG3428MP delivers a strong mix of power (PoE+), throughput (Gigabit + SFP), management features (VLANs, routing, QoS), and flexibility. Instead of dealing with multiple separate power injectors, unmanaged switches, and patchwork wiring, this one box simplifies your setup: data + power + management in a clean, rack-mountable unit.
