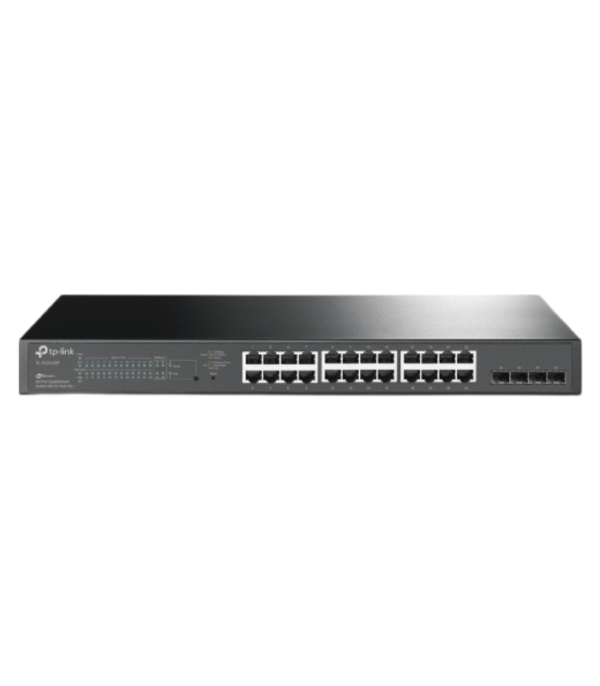

TP-LINK JETSTREAM 24-PORT GIGABIT AND 4-PORT 10GE SFP+ L2+

The TL-SG3428XMP is a high-performance, rack-mountable managed network switch from TP-Link’s JetStream line. It gives you 24 Gigabit Ethernet ports with PoE+ plus 4 SFP+ 10 Gbps uplink ports — so you get both power + data + high-speed backbone capability in one box. It’s ideal for offices, businesses, surveillance systems and larger network setups that need reliability, scalability and centralized control.

Key Specifications

• Ethernet Ports 24 × 10/100/1000 Mbps RJ45 ports (PoE+)
• Uplink Ports 4 × 10 Gbps SFP+ slots
• VLAN / Management Ports 1 × RJ45 console port, 1 × Micro-USB console port
• PoE standard 802.3at/af PoE+ on all 24 RJ45 ports
• PoE Power per Port: Up to 30 W per port
• Total PoE Budget 384 W
• Switching Capacity 128 Gbps
• Packet Forwarding Rate: 95.23 Mpps
• MAC Address Table 16,000 entries
• Packet Buffer Memory 12 Mbit
• Jumbo Frame Support Up to 9 KB
• Physical Size 440 × 330 × 44 mm, 17.3 × 13.0 × 1.7 in
• Mounting Rack-mountable (1U)
• Power Supply 100–240 V AC, 50/60 Hz
• Fans 2 (for active cooling)

Main Features & Benefits

• High-bandwidth 10G uplink
• Full PoE+ support on 24 ports
• Strong PoE power budget (384 W)
• Advanced L2+ / L3 features
• Quality of Service (QoS)
• Secure and reliable networking
• Integrated with Omada SDN
• Rack-mount, professionally built

Where & How You Can Use It

• Medium to large offices/business networks
• CCTV / Security camera systems
• Wi-Fi deployments (hotels, schools, malls)
• Co-working spaces / multi-tenant offices
• Data-center backbone/server uplinks
• Retail, hospitality, or campus networks

Why You (Customer) Should Choose This Switch

If you’re building a serious, scalable network — where many devices need data and power, multiple VLANs, QoS for voice/video, and a high-speed backbone — the TL-SG3428XMP is a “future-ready” solution. This switch saves you from managing several smaller units or power injectors: it delivers power, data, and advanced network control in one compact, rack-mountable box. Whether you run an office, a surveillance deployment, a hotel, a school, or just want a professional backbone for a large network, this switch gives you performance, flexibility, scalability, and peace of mind.
