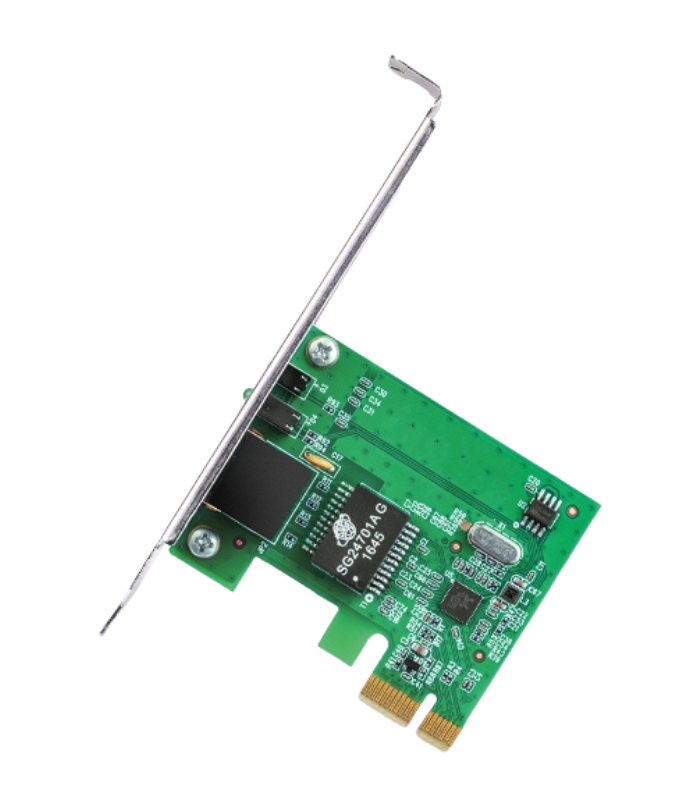

TP-Link Gigabit PCI Express Network Adapter 10/100/1000 Gigabt PCI Adapter

Eliminate the annoyance of upgrading to gigabit Ethernet on your desktop PC. This compact 32-bit PCI Express adapter provides reliable, high-speed wired networking at budget-friendly prices.

Key Specifications

• Standards & Protocols: IEEE 802.3, 802.3u, 802.3ab, full-duplex flow control (802.3x), VLAN tagging (802.1Q), priority encoding (802.1p), CSMA/CD, TCP/IP
• Interface: 32‑bit PCI Express ×1 slot
• Port: Single RJ‑45 10/100/1000 Mbps auto-negotiation
• Data Rates:

1. Half‑duplex: 10/100/1000 Mbps
2. Full‑duplex: 20/200/2000 Mbps

• Network Media:

1. 10BASE-T: UTP Cat 3/4/5 or STP ≤ 100 m
2. 100BASE-TX & 1000BASE-T: UTP Cat 5/5e or STP ≤ 100 m

• LED Indicators: Three separate Link/Activity LEDs (10 Mbps, 100 Mbps, 1000 Mbps)
• Flow Control & Diagnostics: IEEE 802.3x full-duplex flow control, auto‑MDI/MDIX, crossover detection and correction
• Wake‑on‑LAN: Supported for remote wake‑up over LAN
• Hardware Offload: Supports NDIS5/NDIS6 checksum offload (IPv4/IPv6 TCP/UDP), large send offload versions v1/v2
• Dimensions: Roughly 3.1″ × 4.8″ × 0.8″ (78.5 × 120.8 × 21.5 mm)
• Certifications: CE, FCC, RoHS compliance
• System Support: Compatible with Windows XP through Windows 11 (32/64‑bit), Linux (kernel 2.4/2.6+), and Novell NetWare
• Operating Environment:

1. 0 °C to 40 °C operation,
2. –40 °C to 70 °C storage,

• Humidity: 10–90% (operating), 5–90% (storage)

Feature Highlights

• Easy gigabit upgrade—instantly boost any PC with a fast, reliable wired connection using plug‑and‑play simplicity.
• Auto‑Negotiation & Auto‑MDI/MDIX avoid awkward cable setups—just plug in Cat5/5e cable and you’re good.
• Built-in Wake‑on‑LAN support is perfect for remote maintenance, centralized IT control, or scheduled power-ups.
• Low-power offload engine minimizes CPU load with TCP/IP checksum and segmentation offloading.
• QoS & VLAN support with IEEE802.1p priority encoding and VLAN tagging support.
• Space‑saving low-profile design fits both standard and small‑form‑factor cases—low‑profile bracket included
• Diagnostic LEDs enable you to instantly verify link speed and traffic activity.
• Broad OS compatibility ensures that the adapter can be used even in legacy environments (Windows XP/Vista/7/8/8.1/10/11, Linux, Novell)

Recommended Use Cases

• Upgrade desktops with only 10/100 Mbps Ethernet to finish gigabit speed for faster file transfers and more efficient streaming.
• Support remote control of devices with Wake‑on‑LAN in business, laboratory, or server settings.
• Resurrect network connectivity on PCs whose ports or onboard NICs are damaged.
• Add gigabit capability onto Linux-based NAS, older workstation configurations, or small office users with constrained hardware budgets.

Technical Insight

At the core of TG-3468 lies a Realtek-based gigabit transceiver coupled with a lightweight PCIe bus. Automatic speed negotiation and wiring polarity/skew correction are done without user intervention. Two-way data communication reliability is ensured through full-duplex flow control and power-down link detection to conserve energy. Open Source Linux driver support, in addition to classic Microsoft NDIS compatibility, positions it as flexible across platforms—a reliable, cost-effective solution for cable-based networking.

Spitfire-at-a-glance Specs

• Speed: 10 / 100 / 1000 Mbps (Half‑duplex)
• Full-Duplex Capability: Up to 2000 Mbps
• Interface:  32‑bit PCI Express ×1
• Port: 1× RJ‑45 Gigabit Ethernet
• Auto Features: Auto‑Negotiation, Auto‑MDI/MDIX
• Flow Control:  IEEE 802.3x full‑duplex flow control
• Wake‑on‑LAN: Yes
• LED: Status Independent Link/Act LEDs for 10/100/1000 Mbps
• Size: ~78.5 × 120.8 × 21.5 mm
• OS Compatibility: Win XP → Win 11 (32/64-bit), Linux, NetWare
• Certifications: FCC, CE, RoHS
• Package:  Adapter, Resource CD, Quick Install Guide
