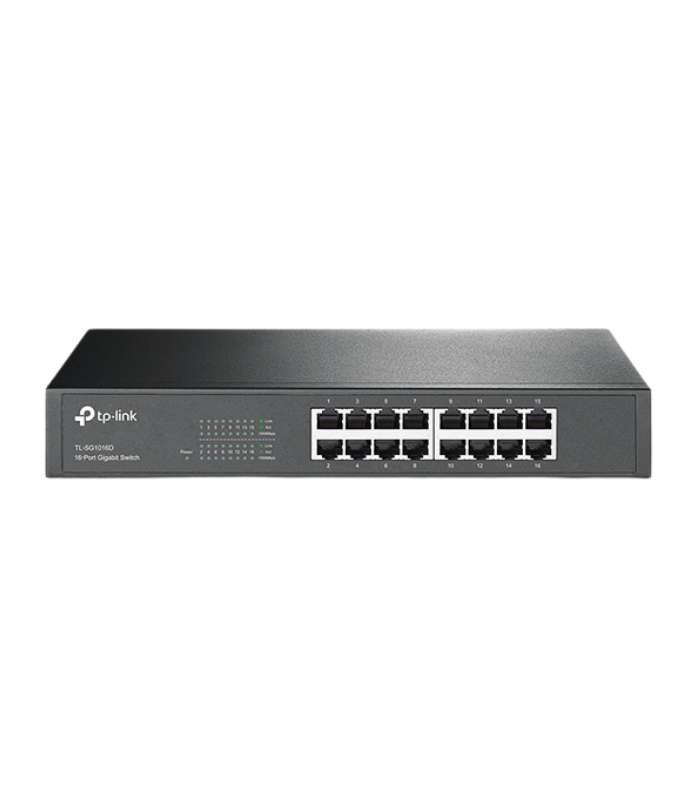

TP-LINK 16-PORT GIGABIT SWITCH

TL-SG1016D offers you 16 Gigabit Ethernet ports. For your home, small office, or workgroup, you get a fast and secure way to connect many wired devices. Plus, you can link computers, NAS devices, printers, network storage, smart-home hubs, and more — all running smoothly together.

This is an unmanaged, plug-and-play switch: no configuration, no technical setup — just plug your devices in and get full-speed connections at once. Plus, it’s energy-efficient and silent, so perfect for home offices or small server racks without noise or high power bills.

Key Specifications

• Ports: 16 × 10/100/1000 Mbps RJ45 Gigabit Ethernet (auto-negotiation, Auto MDI/MDIX)
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 million packets per second (Mpps)
• MAC Address Table Size: 8K entries
• Jumbo Frame Support: Up to 10 KB frames — helps large file transfers
• Standards / Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x
• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption: Max approx. 9.95 W (at 220 V / 50 Hz)
• Dimensions: 294 × 180 × 44 mm (≈ 11.6″ × 7.1″ × 1.7″)
• Form Factor: Desktop or 19″ rack-mountable (metal case)
• Fan: Fanless — silent operation
• Operating Conditions: 0 °C–40 °C; storage –40 °C–70 °C; humidity 10–90% non-condensing.

Key Features & Benefits

• Full Gigabit Speed on All 16 Ports
• Plug-and-Play — No Setup Needed
• High Throughput with Non-Blocking Architecture
• Large File Friendly
• Quiet & Energy-Efficient
• Flexible Installation
• Reliable & Easy Network Upgrade

Typical Uses — Where This Switch Is Ideal

• Home / Home Office Networking
• Small Business Office Network
• Creative Studios & Workgroups
• Server Rooms & Network Closets (Small Scale)
• Network Expansion & Upgrades

Why You (Customer) Need This Switch

TL-SG1016 offers Gigabit-speed connectivity, silent and efficient operation, and along with plug-and-play simplicity. Since it comes with an easy setup so you get a fast, stable, and clutter-free wired network.  It’s perfect whether you’re hooking up a home office, expanding a small business network, or building a reliable backbone for storage, servers, or multimedia work.
