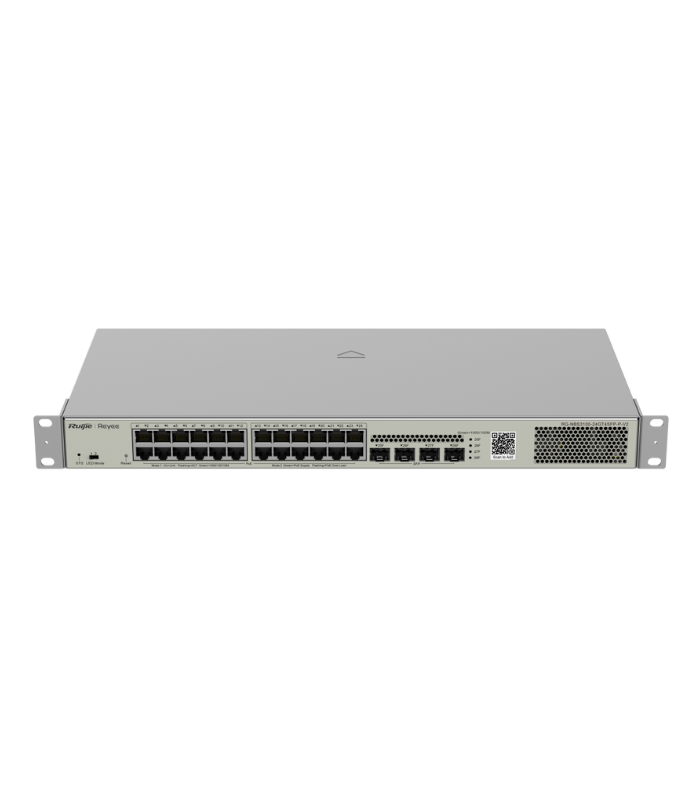

RUIJIE RG-NBS3100-24GT4SFP-P, 28-Port Gigabit Layer 2 Cloud Managed PoE Switch

Say hello to the Ruijie Reyee RG-NBS3100-24GT4SFP-P, a heavy-duty 28-port cloud-managed Gigabit Layer 2 PoE+ switch for high-performance networking in SMBs, surveillance networks, and enterprise environments. It has 24 PoE+ ports and 4 SFP uplinks and offers seamless connectivity and power supply to a range of devices.

Key Features

Model: RG-NBS3100-24GT4SFP-P

Ports:

• 24 × 10/100/1000Base-T PoE+ ports
• 4 × 1000Base-X SFP uplink ports

PoE Standards: IEEE 802.3af/at

Max PoE Output: 370W total, up to 30W per port

Switching Capacity: 56 Gbps

Forwarding Rate: 41.67 Mpps

MAC Address Table: 8K entries

VLANs Supported: 4094

Jumbo Frame Support: Up to 9216 bytes

ACL Entries: 1200

Link Aggregation Groups: 8

Power Consumption: ≤ 443W (full load)

Dimensions: 440 mm × 293 mm × 44 mm

Weight: Approximately 3.6 kg

Operating Temperature: 0°C to 50°C

Power Supply: 100–240V AC, 50/60Hz

Key Features

• Cloud-Based Management: Manage and monitor the switch remotely via Ruijie Cloud platform or mobile app.
• Enterprise-Class Performance: Fast forwarding rate and switching capacity for smooth data transfer.
• Advanced Security: ACLs, 802.1X authentication, and port security capabilities supported.
• IP Camera Recognition: Detects and adjusts settings for IP cameras plugged into it.
• Energy-Efficient Design: IEEE 802.3az compliant for energy-efficient features.
• Easy Deployment: Plug-and-play deployment with easy web-based interface

Best Use Cases

• Small to Medium Businesses: Provides strong network infrastructure with support for PoE-enabled VoIP phones and wireless access points.
• Surveillance Systems: Natively supports IP cameras with simplicity in installation and management.
• Educational Institutions: Supporting high-density device environments with high security and performance.
• Retail and Hospitality: Offering a much relaibe end-to-end connectivity for POS systems, digital signage, and guest Wi-Fi.

The RG-NBS3100-24GT4SFP-P is designed with non-blocking construction, supporting full wire-speed forwarding. Its support for jumbo frames enhances performance during large-scale data exchange, while the 8K MAC address table ensures space for huge network expansions. The PoE+ technology of the switch does away with the need for external power supplies for connected devices, making the infrastructure simpler.
