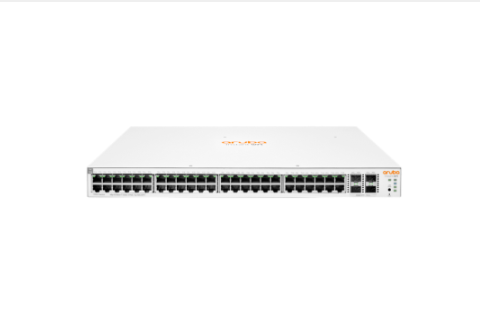

JL686B Aruba HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930

Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power.

Power consumption520.0 W maximum, 50.0 W idle

Input voltage100 – 127 / 200 – 240 VAC

Ports48 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports

Switching capacity176 Gbps

Throughput130.95 Mpps, maximum

Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer

PoE capability370 W Class 4

Management featuresAruba Instant On Portal, Web browser, SNMP Manager

Weight4.59 kg (10.12 lb)

Dimensions4.39 x 44.25 x 32.26 cm (1.73 x 17.42 x 12.7 in)
