D-LINK N300 WRLS MANAGED AP

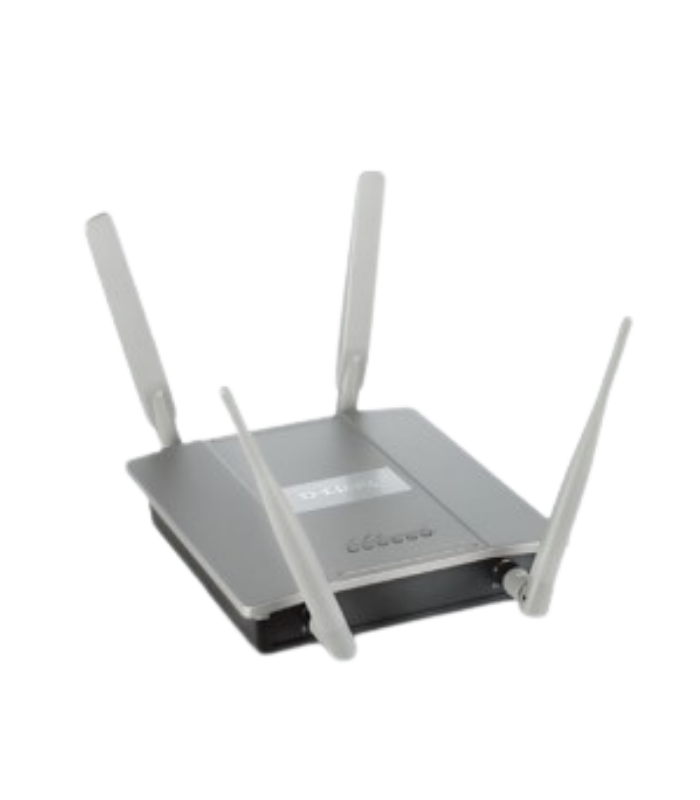

With the D-LINK DAP-2690 Dual-Band Wireless N Managed Access Point, you can easily maximize your wireless network. The AP delivers high-performance 300 Mbps on the 2.4 GHz & 5 GHz bands as it is designed for business-class environments. Since it has simultaneous dual-band coverage and business-class security. Whether you need good WiFi, easy management, and deployment flexibility, especially for offices, schools, hotels, or big events, then this device is ideal for your needs.

Key Specifications

IEEE 802.11n/a/g is the wireless standard for the 2.4 GHz and 5 GHz bands.

Maximum Data Rate: In both the 2.4 GHz and 5 GHz bands, up to 300 Mbps.

Antenna: For versatile coverage, there are four detachable omnidirectional antennas (for both bands).

There are several modes of operation, including Wireless Client, WDS with AP, WDS Bridge, and Access Point (AP).

Management & Security • Supports RADIUS server, internal RADIUS, and WPA/WPA2 (Personal & Enterprise).

• VLANs / multiple SSIDs per band
• MAC address filtering, SSID broadcast disable, rogue AP detection, client isolation
• Web GUI, SSH, Telnet, SNMP management
• QoS / load balancing/traffic control.

Power / Physical Interfaces: 802.3af PoE (Power over Ethernet) supported for areas where no power outlet is available. Gigabit Ethernet port. Metal chassis, plenum-rated for safe deployment in ceiling/duct/air handling spaces.

Environment / Build: Indoor deployment, metal enclosure, plenum-rated. Operates within normal temp & humidity levels.

Features & Benefits

• Simultaneous Dual-Band Wireless N allows you to run both 2.4 GHz and 5 GHz at the same time, reducing interference and providing improved performance to dual-band clients.
• High throughput (300 Mbps per band): suitable for high-density environments, HD video streaming, VoIP, and corporate applications.
• Multiple operation modes: can be utilized as a regular AP, or a bridge networks wirelessly (WDS), or client mode, etc. Flexible for diversified network designing.
• PoE (802.3af) support: simpler installation, fewer power cords, fit in ceiling, walls, etc.
• Enterprise-class security: both WPA2/WPA with RADIUS support, can isolate clients, SSID, and VLAN management. Less chance of network invasion.
• Strong metal housing & plenum-rated chassis: more secure ceiling/air duct installation as per fire code, durable build.
• Flexible management & monitoring software: Web GUI, SNMP, Telnet/SSH, “AP Array” / multi-AP management, etc.

Applications / Ideal Scenarios

• Business / corporate offices where many users/devices need good WiFi, both older (2.4 GHz) and newer (5 GHz).
• Hotels, conference centers, large auditoriums, or campuses where multiple points of entry are installed and need to be centrally managed.
• Ceiling or wall mounting where PoE is necessary (to avoid the need for local power outlets).
• Environments needing strong security / managed access: schools, institutions, government, and healthcare.
• High-traffic areas: video streaming, VoIP, and collaboration apps, where dual-band helps with load balancing.

Technical & Deployment Tips

• Utilize band steering, if supported: helps move dual-band capable clients to 5 GHz to help offset 2.4 GHz congestion.
• When using multiple APs, set up as an AP Array in order to duplicate configurations (SSID, VLANs, QoS) to all APs from a master.
• Antenna orientation: By adjusting/tilting, you can get the best coverage, since antennas are removable. (consider walls, obstructions).
• To power the AP in a clean way, you can make use of 802.3af-rated PoE switches or injectors.
• Balance loading – To prevent congestion try restricting the number of clients per AP.
• Secure the network using Enterprise WPA2 + RADIUS if there are a lot of users; disable SSID broadcast / isolate clients if necessary for guest WiFi.
