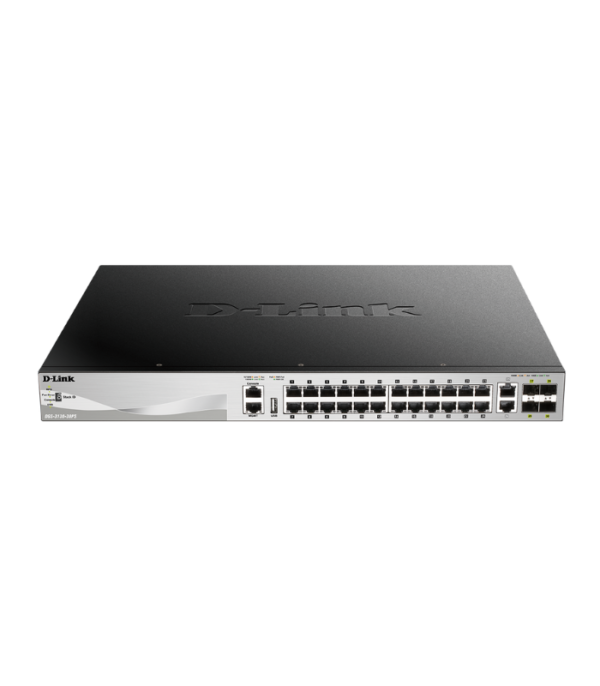

D-LINK 24-Ports GIGABIT POE SWITCH

Searching for an effective means to connect PoE devices without the need for additional power adapters? D‑Link DGS‑F1026P‑E 24‑Port Gigabit PoE Switch. It is designed to be highly functional and easy to operate. It delivers the best solution for providing both data and power to connected devices using just one cable. Additionally, it’s an ideal switch for business networks that feature a variety of cameras, VoIP phones, wireless access points, and more. Also, it’s coupled with 2 SFP uplink ports, since it has a 24-port Gigabit PoE switch.

Key Specifications:

• Brand & Model | D-Link DGS
• Ports 24 x Gigabit RJ45 PoE+ and 2 x Gigabit SFP uplink
• PoE Standard IEEE 802.3af
• Total PoE Power Budget 250 W (up to ~30 W per port)
• Long Reach PoE Ports 1-8: Up to 250 m (Extend mode)
• Switching Capacity 52 Gbps
• Packet Forwarding Rate ~38.69 M
• Surge Protection 6 kV lightning protection
• Dimensions (L×W×H) 440 × 180 × 44
• Weight ~3 kg
• Operating Temp. 0 °C – 40 °C (32 °F – 104 °F)
• Humidity 0 %RH – 95 %RH (non-condensing)
• Operating Desktop / Rack Mountable
• Plug & Play Yes (no complicated installation required)

Features & Benefits

Powerful PoE Support

• The 24 PoE+ Gigabit Ethernet ports can supply data as well as power via a single cable, without the need for a separate power supply.

Fast Connectivity Speeds

• All 24 ports provide Gigabit speed for superfast wired connectivity.
• There are 2 SFP fiber uplink ports that allow you to connect to backbone networks or other switches over long distances.

Reliable & Protected

• 6kV lightning protection shields your networking equipment from electrical surges.
• Auto MDI/MDIX makes cabling easy by requiring no crossover cables.

Intelligent Upgrades

Even though this switch is unmanaged, it still offers smart functionality that you can enable by using DIP switches:

• Extend mode: extended PoE range.
• VLAN Isolation: Mutes Noisy Traffic.
• QoS: focuses on high-priority traffic, including video
• PoE reset: automatic restart of frozen devices.

Easy and Flexible Setup

Plug-and-play functionality – a great feature if you don’t want to go through complicated setup processes.

Where Can You Use It?

This switch can be used in many different networks:

• Business & Office Networks
• Security & Surveillance
• Wireless Networks
• Small-Medium Enterprises (SMEs)
• Retail Stores & Hospitality
