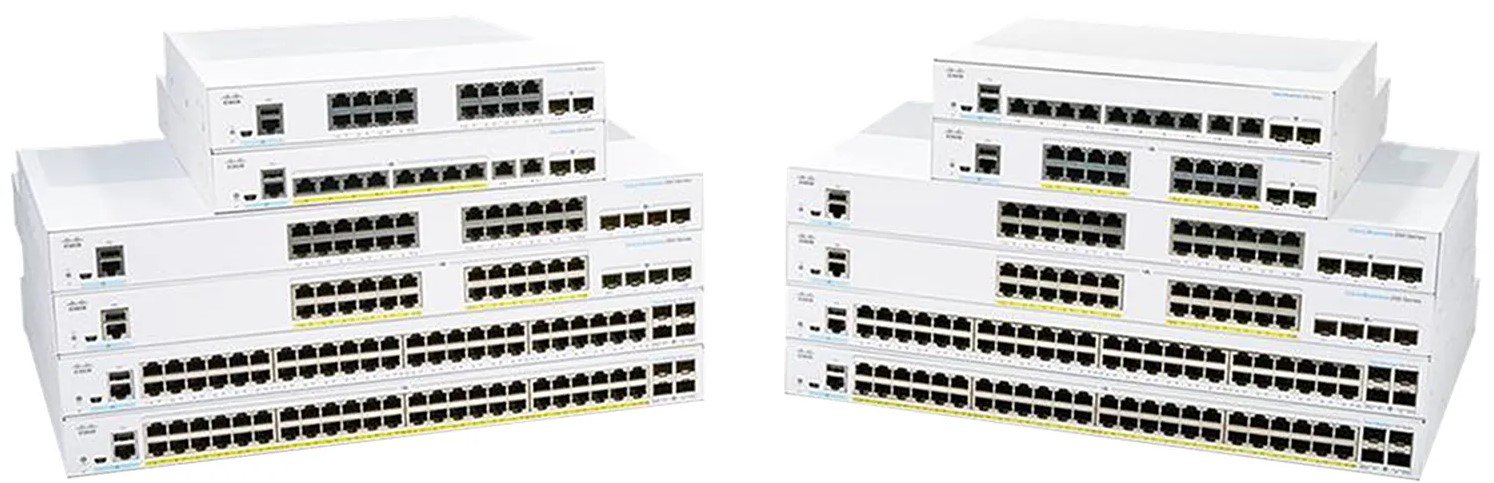

CISCO CBS MANAGED 8-PORT GIGABIT POE+ SWITCH

Key Features

Ports:

• 8 × 10/100/1000 Mbps Gigabit Ethernet PoE+ Ports
• 2 × 1G SFP Uplink Ports

Power over Ethernet (PoE+):
Total PoE Power Budget:
120W
IEEE 802.3af/at Compliant

Switching Capacity:
20 Gbps

Forwarding Rate:
14.88 Mpps

Layer 3 Features:
Static Routing
Layer 3 Switching

Management:
Cisco Business Dashboard
Web User Interface (UI)
Command-Line Interface (CLI)

Form Factor:
Rack-Mountable (1U)

Dimensions:
268 mm × 185 mm × 44 mm (10.56 in × 7.28 in × 1.73 in)

Weight:
Approximately 1.5 kg (3.3 lbs)

Power Supply:
Internal Power Supply

Operating Temperature:
0°C to 40°C (32°F to 104°F)

Certifications:

CE, UL, RoHS

Primary Features

High PoE+ Power Budget:

• Delivers up to 120W PoE+ power on 8 ports, powering devices like IP phones, wireless access points, and security cameras.

Advanced Layer 3 Functionality:

• Static routing is supported for best traffic handling between VLANs.

Extensive Security Features:

• Includes 802.1X port security, DHCP snooping, and IP-MAC binding to secure your network.

QoS, or quality of service:

• Enhances the priority of phone and video traffic, which are important for business, to deliver optimal performance.

Energy-Saving:

• Reduces power usage by adhering to IEEE 802.3az Energy Efficient Ethernet specifications.Easy to Manage:
• Overseen by Cisco Business Dashboard, which offers a simple and intuitive interface for administration and monitoring.

Use Cases

Small to Medium-Sized Businesses (SMBs):

• A top pick for firms seeking a cost-effective, secure, and scalable network solution.

Unified Communications:

• Supports voice, video, and data traffic over a single network infrastructure.

Surveillance Systems:

• Supplying power and networking IP cameras and other security devices.

Wireless Networks:

• Providing PoE+ to wireless access points for easy connectivity.

Technical Knowledge

The Cisco CBS350-8FP-E-2G-UK switch offers proper networking for the modern-day business. The PoE+ feature of the switch enables simple powered device deployment, reducing the utilization of additional power sources. By rerouting traffic between VLANs without overtaxing the main router, Layer 3 static routing ensures an effective network. DHCP snooping and 802.1X authentication are security methods that prevent attacks and unauthorized access. The switch is designed energy-efficiently in order to offer lower operating costs while offering high performance.
