CISCO 1-GBASE LR SFP MODULE ENTERPRISE – CLASS

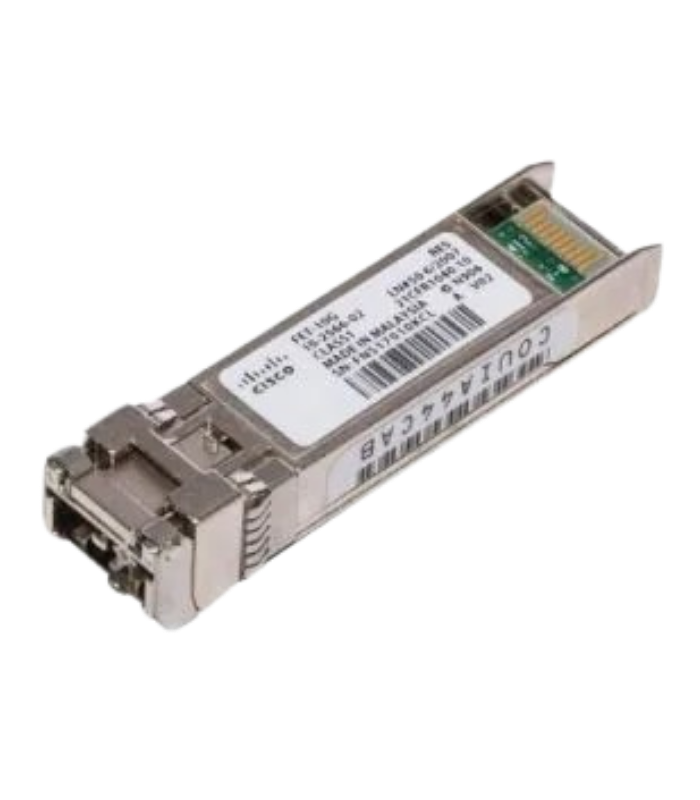

The Cisco SFP-10G-LR is a high-speed 10 Gigabit Ethernet transceiver module for single-mode fiber (SMF) applications. It is capable of supporting up to 10 km link length, and it is well suited for data center, enterprise wiring closet, and service provider transport applications.

Key Specifications

Form Factor: SFP+

Data Rate: 10 Gbps

Wavelength: 1310 nm

Connector Type: LC duplex

Maximum Distance: 10 km over SMF (G.652)

Operating Temperature: 0°C to 70°C (32°F to 158°F)

Power Consumption: Typically 1.5W

Digital Optical Monitoring (DOM): Supported

Compliance: IEEE 802.3ae 10GBASE-LR

Qualities

• Long-Reach Connectivity: Perfect for long-distance network connections, this technology supports 10 Gigabit Ethernet connectivity up to 10 km.
• Hot-Pluggable: Makes it simple to add and remove without interfering with the network.
• Real-time monitoring of vital parameters like temperature and optical power is possible with digital optical monitoring.
• Low Power Consumption: 1.5W nominal power consumption allows for efficient operation.
• Wide Range of Compatibility: Suitable for a large number of Cisco switches and routers.

Applications

• Data Centers: High-speed interconnects among switches and servers.
• Enterprise Networks: Reliable backbone connections over hundreds of kilometers.
• Service Providers: Flexible transport solutions in metro and regional networks.

Dimensions & Weight

• Dimensions: Approximately 56.5 mm (L) x 13.4 mm (W) x 8.5 mm (H)
• Weight: Approximately 0.1 kg
