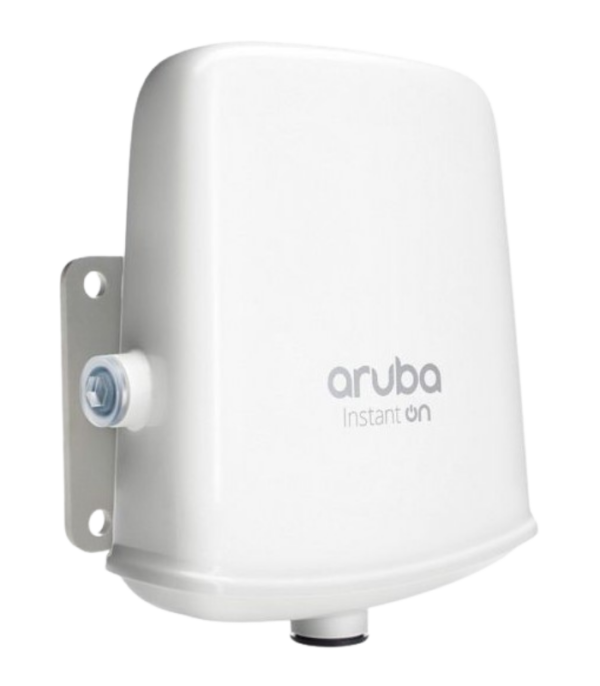

Aruba Instant On AP25 (RW) 4×4 Wi-Fi 6 AP

Aruba Instant On AP25 (RW) is an ideal and reliable access point. This device features the latest Wi-Fi 6 (802.11ax) technology. Whether it’s high-traffic usage or multi-device locations (video calls, streaming, etc.), this access point is an ideal device. Additionally, this device is easy to install and maintain because it has faster speed, capacity, and reliability; it’s a reliable substitute for older WiFi (802.11ac).

Key Specifications

• WiFi Standard: Dual-band 802.11ax (Wi-Fi 6)
• Spatial Streams: 4×4 on 5 GHz, 2×2 on 2.4 GHz
• Max Data Rate: Up to 5.3 Gbps aggregate (≈ 4.8 Gbps on 5 GHz + 574 Mbps on 2.4 GHz)
• Ethernet Uplink Port: 2.5 Gigabit Ethernet port (PoE-in support)
• Channel Bandwidth: Supports 160 MHz (HE160) on 5 GHz for higher throughput
• WiFi Improvements / Efficiency Features: OFDMA, MU-MIMO, Target Wake Time (TWT)
• Backward Compatibility: Works with older WiFi devices (802.11a/b/g/n/ac)
• Security Features: WPA2 / WPA3, “Enhanced Open” support for guest network
• App / Management: Instant On mobile app + web-cloud portal for setup and management
• Warranty / Support: Two-year warranty; 24/7 phone/chat support for the first period; community support after that

Features & Highlights

• Fast throughput & low delay — Ideal for video streaming, large files, and video conferencing.
• Supports many devices well — Thanks to MU-MIMO, OFDMA, 4×4 radio; ideal to use in public areas.
• Energy efficient — Target Wake Time saves battery on devices through enabling them to “sleep” when unused.
• High security supported — WPA3 with guest access through Enhanced Open supports higher security.
• Easy to install & manage — Ceiling and wall mountable; managed using a web page or mobile app.
• 2.5 Gbps uplink supports a high-speed wired backbone to enable high wireless speed.
• Future-proof — High capacity, latest standard, is also compatible with legacy devices, so you can migrate in phases.

Uses / Where to Use

This AP25 is especially suited for:

• Busy offices, especially open-plan, coworking offices, or office spaces with lots of wireless devices.
• Retail stores, restaurants, and cafes with guest WiFi and needing robust service.
• Hospitality environments: boutique hotels, lounges, meeting rooms.
• Education / Classrooms where many students/devices are connected simultaneously.
• Home offices / Small business HQs demanding serious performance.
• Any room with heavy device usage: video conferencing, streaming, cloud computing, etc.

Size, Power & Other Physical Details

• Power options: Powered by Power over Ethernet (PoE, typically 802.3at Class 4) or through a DC power adapter where needed.
• Typical power consumption: Max ~20.1 W under PoE worst-case load.
• Ports & connections: 1 × 2.5 Gb Ethernet; PoE-in / DC power input.
• Hardware mounted included: Ceiling/wall/rail mounts combined clip; Ethernet cable; quick-start guide.
