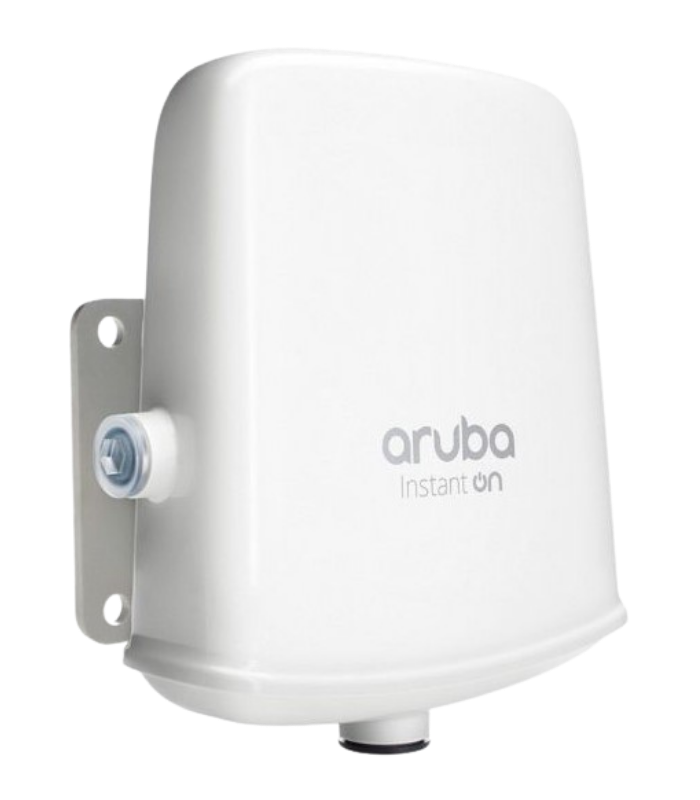

ARUBA INSTANT ON AP17 RW

Aruba Instant On AP17 (RW) is a weather-resistant outdoor access point that is rugged and can deliver excellent Wi-Fi performance in challenging environments. Ideal for open-air locations, cafes, and small businesses, it offers hassle-free connectivity and easy management.

Key Specifications

Model Number: R2X11A

Wi-Fi Standards: 802.11ac Wave 2 (Wi-Fi 5)

Radios: Dual-band 2×2:2 MU-MIMO

2.4 GHz: Up to 300 Mbps

5 GHz: Up to 867 Mbps

Antenna Gain:

• 2.4 GHz: 4.7 dBi
• 5 GHz: 4.2 dBi

Ethernet Interface: 1 x 10/100/1000BASE-T (RJ-45) with PoE-in support (802.3af)

Power Consumption: Max 13.5W

Management: Instant On mobile app and cloud portal

Security: WPA2/WPA3, VLANs, MAC filtering

Operating Temperature: -40°C to +50°C (-40°F to +122°F)

Dimensions: 187 x 156 x 67 mm

Weight: 650 g

Warranty: 2-year limited warranty

Features

• Weather-Resistant Design: Built to withstand harsh outdoor conditions, including rain, snow, and extreme temperatures.
• Smart Mesh Technology: Easily extend Wi-Fi coverage without additional cabling.
• High-Performance Connectivity: Concurrent connection to numerous devices using MU-MIMO technology.
• Easy-to-Use Management: Simple setup and management of your network with the Instant On mobile app or cloud portal.
• Secure Guest Access: Create guest networks with permissions that can be customized.
• Integrated BLE Radio: Enables location-based services and IoT applications.

Use Cases

• Outdoor Cafés and Restaurants: Provide reliable Wi-Fi to outdoor customers.
• Retail Storefronts: Provide enhanced customer experience via seamless outdoor connectivity.
• Educational Facilities: Offer outdoor common area campus Wi-Fi extensions.
• Hotel Venues: Offer outdoor guests stable internet connectivity.

Package Contents

• Aruba Instant On AP17 Access Point
• Wall Mount Bracket
• Cable Gland
• Mounting Screws (M4x6, M6x45)
• Copper Lug
• Quick Start Guide
