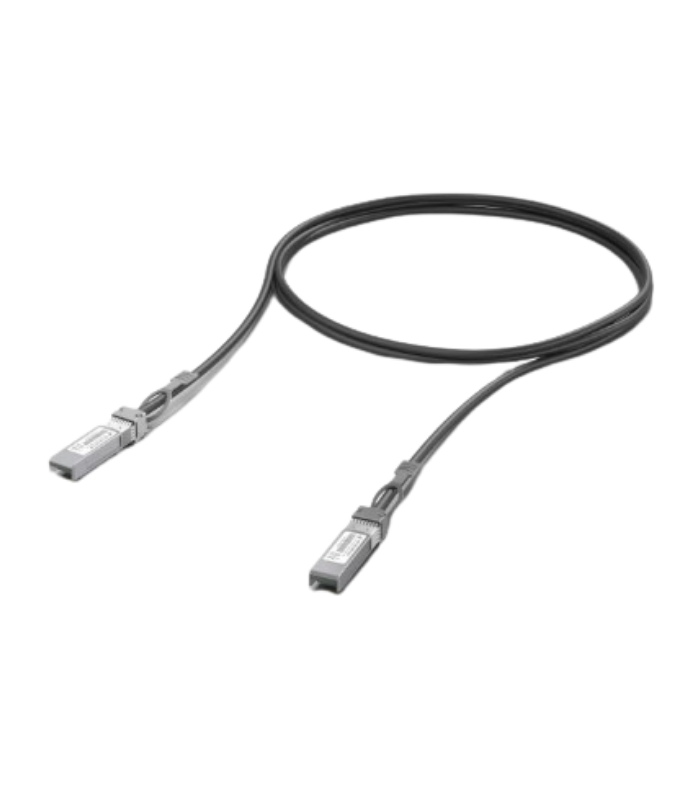

10G Direct Attach Cable

Ubiquiti UniFi 10G Direct Attach Cable (UACC-DAC-SFP10) is a low-cost, low-latency solution designed for use in short-distance high-speed data links. Passive SFP+ to SFP+ copper cable supports data speeds of 10 Gbps and is designed for interconnecting switches, servers, and other network devices in racks or same-row racks of data centers and enterprise networks.

Key Specifications

Brand: Ubiquiti

Model: UACC-DAC-SFP10

Connector Type: SFP+ to SFP+

Data Rate: 10 Gbps

Cable Type: Passive Direct Attach Copper (DAC)

Available Lengths: 0.5 m (1.6 ft), 1 m (3.3 ft), 3 m (9.8 ft)

Outer Jacket Material: PVC

Outer Jacket Diameter: 4.2 mm (0.5 m), 6.0 mm (1 m and 3 m)

Jacket Color: Black

Wire Size: 30 AWG

Operating Temperature Range: 0 to 70°C (32 to 158°F)

Compliance: NDAA Compliant

High-Speed Performance: Supports up to 10 Gbps data rates, enabling high-speed data transfer for high-bandwidth applications.

Cost-Effective Alternative: Offers a cost-effective substitute for fiber cables and optical transceivers for short-distance links.

Long-Lasting Build: PVC jacket and heavy-duty connectors ensure longevity and hard-wearing operation.

Energy Efficient: Passive design does not consume additional power, conserving energy.

Flexible Compatibility: Compatible with Ubiquiti’s UniFi switches and other network devices that have SFP+ ports.

Use Cases

• Data Center Interconnects: Ideal for interconnecting switches and servers in racks or between adjacent racks.
• Enterprise Networks: Facilitating high-speed interconnection between distribution and core switches.
• Storage Area Networks (SANs): Providing reliable interconnection between storage devices with high data throughput needs.
• High-Performance Computing (HPC): Facilitating low-latency interconnections needed in HPC environments.

Dimensions & Weight

• Length Options: 0.5 m (1.6 ft), 1 m (3.3 ft), 3 m (9.8 ft)
• Weight: Approximately 100 grams (length-dependent)
